Overview

Test

Kubernetes clusters are configured using manifests, or configs, written in YAML or JSON. These configurations include important Kubernetes objects such as Namespaces, ClusterRoles, ClusterRoleBindings, Roles, RoleBindings, PodSecurityPolicy, NetworkPolicy, and ResourceQuotas, etc.

These declarative configs can be applied by hand or with automated tooling. The preferred method is to use an automated process to establish and maintain a consistently managed environment from the beginning.

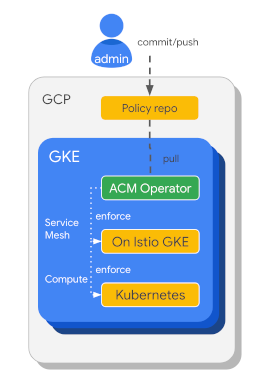

Anthos Config Management is a solution to help manage these resources in a configuration-as-code like manner. Anthos Config Management utilizes a version-controlled Git repository (repo) for configuration storage along with configuration operators which apply configs to selected clusters.

Anthos Config Management allows you to easily manage the configuration of many clusters. At the heart of this process are the Git repositories that store the configurations to be applied on the clusters.

Objectives

In this lab, you learn how to perform the following tasks:

• Install the Config Management Operator and the nomos command-line tool
• Set up your config repo in Cloud Source Repositories
• Connect your GKE clusters to the config repo
• Examine the configs in your clusters and repo
• Filter application of configs by Namespace
• Review automated drift management
• Update a config in the repo

Setup and requirements

For each lab, you get a new Google Cloud project and set of resources for a fixed time at no cost.

1. Sign in to Qwiklabs using an incognito window.

2. Note the lab's access time (for example, 1:15:00), and make sure you can finish within that time.
   There is no pause feature. You can restart if needed, but you have to start at the beginning.

3. When ready, click Start lab.

4. Note your lab credentials (Username and Password). You will use them to sign in to the Google Cloud Console.

5. Click Open Google Console.

6. Click Use another account and copy/paste credentials for this lab into the prompts.
   If you use other credentials, you'll receive errors or incur charges.

7. Accept the terms and skip the recovery resource page.

After you complete the initial sign-in steps, the project dashboard appears.

8. Click Select a project, highlight your GCP Project ID, and click OPEN to select your project.

Activate Google Cloud Shell

Google Cloud Shell is a virtual machine that is loaded with development tools. It offers a persistent 5GB home directory and runs on the Google Cloud.

Google Cloud Shell provides command-line access to your Google Cloud resources.

1. In Cloud console, on the top right toolbar, click the Open Cloud Shell button.



2. Click Continue.

It takes a few moments to provision and connect to the environment. When you are connected, you are already authenticated, and the project is set to your PROJECT_ID. For example:

gcloud is the command-line tool for Google Cloud. It comes pre-installed on Cloud Shell and supports tab-completion.

• You can list the active account name with this command:

gcloud auth list

Output:

Credentialed accounts: - @.com (active)

Example output:

Credentialed accounts: - google1623327_student@qwiklabs.net

• You can list the project ID with this command:

gcloud config list project

Output:

[core] project =

Example output:

[core] project = qwiklabs-gcp-44776a13dea667a6 Note: Full documentation of gcloud is available in the gcloud CLI overview guide .

Task 1. Complete and verify the lab setup

Note: The lab environment has already been partially configured:

• A GKE cluster named gke has been created and registered. Anthos Service Mesh has been installed, as has the Online Boutique demo application.
• An open source Kubernetes cluster named onprem-connect has been created. Istio has been installed, as has the Online Boutique application.

1. Set up the Cloud Shell environment for command-line access to your clusters:

   export PROJECT_ID=$(gcloud config get-value project) export SHELL_IP=$(curl -s api.ipify.org) export KUBECONFIG=~/.kube/config export PROJECT_NUMBER=$(gcloud projects describe ${PROJECT_ID} \ --format="value(projectNumber)") gcloud compute firewall-rules create shell-to-onprem \ --network=onprem-k8s-local \ --allow tcp \ --source-ranges $SHELL_IP gsutil cp gs://$PROJECT_ID-kops-onprem/config \ ~/.kube/config

2. Set kubectl to use the context for the onprem cluster:

   kubectx onprem.k8s.local

3. Create a JSON Web Token (JWTs) for the remote-admin-sa secret that represents the Kubernetes Service Account that will be used for GKE Connect:

   kubectl create token remote-admin-sa

   Output:

   aSB3aWxsIG5vdCB0cnkgdG8gc3RlYWwgc29tZW9uZSBlbHNlcyB0b2tlbiBhZ2FpbgppIHdpbGwgbm90IHRyeSB0byBzdGVhbCBzb21lb25lIGVsc2VzIHRva2VuIGFnYWluCmkgd2lsbCBub3QgdHJ5IHRvIHN0ZWFsIHNvbWVvbmUgZWxzZXMgdG9rZW4gYWdhaW4KaSB3aWxsIG5vdCB0cnkgdG8gc3RlYWwgc29tZW9uZSBlbHNlcyB0b2tlbiBhZ2FpbgppIHdpbGwgbm90IHRyeSB0byBzdGVhbCBzb21lb25lIGVsc2VzIHRva2VuIGFnYWluCmkgd2lsbCBub3QgdHJ5IHRvIHN0ZWFsIHNvbWVvbmUgZWxzZXMgdG9rZW4gYWdhaW4KaSB3aWxsIG5vdCB0cnkgdG8gc3RlYWwgc29tZW9uZSBlbHNlcyB0b2tlbiBhZ2FpbgppIHdpbGwgbm90IHRyeSB0byBzdGVhbCBzb21lb25lIGVsc2VzIHRva2VuIGFnYWluCmkgd2lsbCBub3QgdHJ5IHRvIHN0ZWFsIHNvbWVvbmUgZWxzZXMgdG9rZW4gYWdhaW4K

4. Select the token contents in the Cloud Shell (this will automatically copy the contents).

   Note: Don't use Ctrl+c or Command+c to copy to the clipboard. Those keystrokes will copy over new line breaks from the display,instead of treating the token as a single line of text.
   Simply selecting text in Cloud Shell will put the contents in your clipboard buffer.

5. Go to Navigation > Kubernetes Engine > Clusters, scroll to the right, click on the 3 dots to open the dropdown menu of the the onprem-connect cluster row, and click on the Log in option.

6. When prompted, select Token as the authentication type, and paste the previously copied token, then click Login.

   You should now see two clusters listed with green checkmarks which indicates both clusters are registered successfully.

7. Visit the Gateways, Services & Ingress page, select Services tab and find the frontend-external service address for each cluster.

   • Remove the filters(if any) to see the frontend-external service addresses.
   • Visit those addresses in new browser tabs and verify that separate, independent applications are up and running in each cluster.

Task 2. Install the Config Management Operator and the nomos command-line tool

The Config Management Operator is a Kubernetes controller that manages Anthos Config Management in a Kubernetes cluster. In this task, you install the Operator as a system workload on both clusters. You also install the nomos command-line tool which helps you to understand the state of Anthos Config Management in your clusters.

Install the Config Management Operator on the gke cluster

1. Set the Zone environment variable

   ZONE={{{ project_0.default_zone| "Zone added at lab start" }}}

2. In Cloud Shell, switch your context to the gke cluster:

   gcloud container clusters get-credentials gke --zone $ZONE --project $PROJECT_ID kubectx gke=gke_${PROJECT_ID}_${ZONE}_gke kubectx gke

3. Download the configuration file for Config Management resources:

   export LAB_DIR=$HOME/acm-lab mkdir $LAB_DIR cd $LAB_DIR gsutil cp gs://config-management-release/released/latest/config-management-operator.yaml config-management-operator.yaml

4. Review the file in the Cloud Shell editor to get a sense of what is being created on your cluster.

   The file is acm-lab/config-management-operator.yaml:

   edit config-management-operator.yaml Note: You may need to load the code editor in a new window when running the lab in an incognito window.

5. Exit the editor and apply the configuration to the gke cluster:

   You may need to click Open Terminal in Cloud Shell.

   kubectl apply -f config-management-operator.yaml

   Output

   customresourcedefinition.apiextensions.k8s.io/configmanagements.addons.sigs.k8s.io created clusterrolebinding.rbac.authorization.k8s.io/config-management-operator created clusterrole.rbac.authorization.k8s.io/config-management-operator created serviceaccount/config-management-operator created deployment.apps/config-management-operator created namespace/config-management-system created

6. Use the GCP Console to verify that a system workload called config-management-operator has been created. Visit Navigation > Kubernetes Engine > Workloads.

   Remove the filter to show system objects, and you should see the deployment.

Install the Config Management Operator on the onprem cluster

7. Switch contexts, and apply the configuration file to the onprem cluster:

   kubectx onprem.k8s.local kubectl apply -f config-management-operator.yaml

8. Using the console, or the kubectl command, verify that the Config Management Operator has been deployed to the onprem cluster.

Install the nomos command-line tool in Cloud Shell

9. In Cloud Shell, download the nomos command-line tool:

   cd $LAB_DIR gsutil cp gs://config-management-release/released/latest/linux_amd64/nomos nomos chmod +x ./nomos

10. Use nomos status to check if Anthos Config Management is properly installed and configured:

    ./nomos status

    Output:

    Connecting to clusters... gke -------------------- Failed to get the RootSync CRD: customresourcedefinitions.apiextensions.k8s.io "rootsyncs.configsync.gke.io" not found *onprem.k8s.local -------------------- Failed to get the RootSync CRD: customresourcedefinitions.apiextensions.k8s.io "rootsyncs.configsync.gke.io" not found

    In this case, config management is installed but not yet configured for your clusters.

    When nomos status reports an error, it also shows any additional error text available to help diagnose the problem under Config Management Errors.

    You will correct the issues you see here in later steps.

Task 3. Set up your Anthos Config Management repository

Anthos Config Management requires you to store your configurations in a Git repository. In this task, you set up that repository.

Anthos Config Management supports any Git repo including GitHub and Google Cloud Source Repositories. In this lab, you will use Cloud Source Repositories.

Create a new local config repo

1. Set the username and email address for your Git activities:

   export GCLOUD_EMAIL=$(gcloud config get-value account) echo $GCLOUD_EMAIL echo $USER git config --global user.email "$GCLOUD_EMAIL" git config --global user.name "$USER"

2. Get sample config files for the lab:

   git clone https://github.com/GoogleCloudPlatform/training-data-analyst cd ./training-data-analyst/courses/ahybrid/v1.0/AHYBRID071/config

3. Take a moment to review the structure of the config directory. Click the Open Editor button in Cloud Shell, then in the explorer section of the editor, drill down into acm-lab/training-data-analyst/courses/ahybrid/v1.0/AHYBRID071/config.

   Take a minute to review the subdirectories and the contents of the config files you find.

4. Click Open Terminal to return to the Cloud Shell command line, and initialize the config directory as a new local Git repo:

   git init git add . git commit -m "Initial config repo commit"

   Output:

   9 files changed, 67 insertions(+) create mode 100644 README.md create mode 100644 cluster/clusterrole-namespace-readers.yaml create mode 100644 cluster/clusterrolebinding-namespace-readers.yaml create mode 100644 namespaces/dev/namespace.yaml create mode 100644 namespaces/prod/namespace.yaml create mode 100644 namespaces/rolebinding-sre.yaml create mode 100644 namespaces/selector-sre-support.yaml create mode 100644 system/README.md create mode 100644 system/repo.yaml

Create a Cloud Source Repositories repo and configure it as a remote for the local repo

1. Create a Cloud Source Repositories repo named anthos_config to host your code:

   gcloud source repos create anthos_config

2. Set gcloud.sh to supply credentials for Git access:

   git config credential.helper gcloud.sh

3. Add your newly created config repository as a Git remote:

   git remote add origin https://source.developers.google.com/p/$PROJECT_ID/r/anthos_config

4. Push your code to the new repository's master branch:

   git push origin master

5. Verify your repo and source code were created in Cloud Source Repositories. Select Navigation > VIEW ALL PRODUCTS > Source Repositories. Then select the anthos_config repository.

Generate keys, and create secrets on your clusters

The Anthos Config Management Config Operator, when running on your clusters, needs read-only access to your Git repo, so it can read the latest committed configs, then check and/or apply them to your clusters. The credentials for this read-only access to your Git repo are stored in the git-creds secret on each enrolled cluster.

When using Cloud Source Repositories, an SSH keypair is the recommended approach to authorize access to your repo.

1. Using Cloud Shell, generate an SSH keypair:

   export GCLOUD_EMAIL=$(gcloud config get-value account) cd $LAB_DIR ssh-keygen -t rsa -b 4096 \ -C "$GCLOUD_EMAIL" \ -N '' \ -f $HOME/.ssh/id_rsa.acm

2. Save the private key to a secret on each cluster:

   kubectx gke kubectl create secret generic git-creds \ --namespace=config-management-system \ --from-file=ssh=$HOME/.ssh/id_rsa.acm kubectx onprem.k8s.local kubectl create secret generic git-creds \ --namespace=config-management-system \ --from-file=ssh=$HOME/.ssh/id_rsa.acm Note: This private key should be carefully protected!

Manage keys in Cloud Source Repositories

The SSH public key portion of your generated SSH keypair needs to be registered with Cloud Source Repositories. The Config Operators on your clusters can then use the SSH private key, just stored as a cluster secret, to access your config repository.

1. In the Cloud Source Repositories console, click the three dots in the top-right toolbar, then click Manage SSH Keys.

2. Click Register SSH Key.

3. You may be prompted to enter your Qwiklabs user password.

4. Enter config demo key in the Key Name field. You can choose a different key name if needed.

5. From Cloud Shell, copy the key value from the output of this command:

   cat $HOME/.ssh/id_rsa.acm.pub Note: The key begins with ssh- or ecdsa-, and ends with an email address. Note: Don't use Ctrl+c or Command+c to copy to the clipboard. Those keystrokes will copy over new line breaks from the display,instead of treating the key value as it should.
   Simply selecting text in Cloud Shell will put the contents in your clipboard buffer.

6. Return to Cloud Source Repositories, and paste the copied key from your public key file into the Key field.

7. Click Register.

   You will now see your registered key on the Manage SSH Keys page.

Task 4. Define and deploy Config Management Operators

Create your ConfigManagement YAML files

To configure the Config Management Operators to read from your repo, you will create configuration files for the ConfigManagement CustomResources and apply them to your clusters.

You have been provided configuration files for your two clusters. You will need to modify each to point to your hosted repo.

1. Using the Cloud Shell Code Editor, open the gke configuration file for editing:

   edit ~/acm-lab/training-data-analyst/courses/ahybrid/v1.0/AHYBRID071/config-management/gke-config-management.yaml

2. Replace the [qwiklabs-user-email] placeholder with the email address for your Qwiklabs user, as shown in the upper left corner of the Qwiklabs window.

3. Replace the [qwiklabs-project] placeholder with GCP Project ID for your project shown in the upper left corner of the Qwiklabs window.

   Notice also that a variety of options can be included to configure how the resource interacts with your repo. For example, auth is set to ssh indicating ConfigManagement should use the keys stored previously.

   For more details about the fields, check the installation instructions.

4. Save the changes to your file.

5. Repeat the process for the onprem configuration file:

   edit ~/acm-lab/training-data-analyst/courses/ahybrid/v1.0/AHYBRID071/config-management/onprem-config-management.yaml

   You can copy the line from gke-config-management.yaml.

Check the current state of your clusters

1. Back in Cloud Shell, switch contexts to your gke cluster and list Namespaces:

   kubectx gke kubectl get namespace

   Output:

   NAME STATUS AGE config-management-monitoring Active 6m31s config-management-system Active 6m31s default Active 26m istio-system Active 25m kube-node-lease Active 27m kube-public Active 27m kube-system Active 27m prod Active 24m
   • Do you see a prod Namespace?
   • What about a dev Namespace?

2. Describe the prod Namespace and note the labels you see:

   kubectl describe namespace prod

   Output:

   Name: prod Labels: istio.io/rev=asm-1157-1 Annotations: Status: Active Resource Quotas Name: gke-resource-quotas Resource Used Hard -------- --- --- count/ingresses.extensions 0 100 count/jobs.batch 0 5k pods 12 1500 services 12 500 No LimitRange resource.

3. List the ClusterRoles and the ClusterRoleBindings on the gke cluster:

   kubectl get clusterroles

   Output:

   NAME ... system:node-bootstrapper system:node-problem-detector system:node-proxier system:persistent-volume-provisioner system:public-info-viewer system:volume-scheduler view

   and

   kubectl get clusterrolebindings

   Output:

   NAME ... system:metrics-server system:node system:node-proxier system:public-info-viewer system:volume-scheduler
   • Do you see any references to namespace-readers?

4. List the RoleBindings for the prod service.

   kubectl get rolebindings -n prod

   Output:

   NAME ROLE AGE istio-ingressgateway Role/istio-ingressgateway 12m
   • Do you see any reference to sre@foo-corp.com?

Note: At this point, both your clusters have a prod Namespace, but no dev Namespace. There are no namespace-readers ClusterRoles or bindings, nor are there any RoleBindings in the prod Namespace for the sre group. This will all change when config management is enabled.

Review the configurations stored in your repo

1. In the Cloud Shell editor, navigate to acm-lab/training-data-analyst/courses/ahybrid/v1.0/AHYBRID071/config. Note the folder structure:

   • The cluster folder has configurations that apply to clusters being managed
   • The namespaces folder has configurations that apply to namespaces on clusters being managed.

2. In the cluster folder, open and review the configuration files you find. One defines a ClusterRole you wish to add to each cluster, and the second defines a ClusterRoleBinding you wish to add to each cluster.

3. In the namespaces folder, open the dev folder and then the namespace.yaml file inside. This file defines a Namespace you wish to have created on every cluster.

4. In the namespaces folder, open the prod folder and then the namespace.yaml file inside. This file defines a Namespace you wish to have created on every cluster. Note the env label.

5. In the namespaces folder, open the selector-sre-support.yaml file. Note that the NamespaceSelector will select only Namespaces that have a given label. In this case, the label is env:prod - so only the prod Namespace will be affected by configurations that use this selector.

6. In the namespaces folder, open the rolebinding-sre.yaml file. Note the annotations which indicate that this config should be applied using a selector.

   Note: When these configurations are applied, you should end up with the following in place:
   • A ClusterRole named namespace-readers
   • A ClusterRoleBinding for Cheryl
   • A dev Namespace
   • A prod Namespace with env and istio-injection labels
   • A RoleBinding in the prod Namespace for sre@foo-corp.com

Deploy the Config Management Operator

1. In Cloud Shell, apply the configuration to the gke cluster.

   kubectx gke kubectl apply -f ~/acm-lab/training-data-analyst/courses/ahybrid/v1.0/AHYBRID071/config-management/gke-config-management.yaml

   Output:

   configmanagement.configmanagement.gke.io/config-management created If you get an error message, run the `kubectl apply` command again. The error message should disappear.

2. Apply the configuration to the onprem cluster.

   kubectx onprem.k8s.local kubectl apply -f ~/acm-lab/training-data-analyst/courses/ahybrid/v1.0/AHYBRID071/config-management/onprem-config-management.yaml

   Output:

   configmanagement.configmanagement.gke.io/config-management created

3. Wait 30 seconds, then use nomos status to see if Anthos Config Management is properly installed and configured. If the clusters aren't both synched, wait another 30 seconds and try again. They should be synched at this point.

   ./nomos status

   Output:

   Connecting to clusters... *gke -------------------- :root-sync ssh://student-00-d32e55d77a02@qwiklabs.net@source.developers.google.com:2022/p/qwiklabs-gcp-01-d08087e65819/r/anthos_config@master SYNCED @ 2024-09-25 08:00:13 +0000 UTC 43a1a388b924b18c985ee230c8b316fe2711c8b1 Managed resources: NAMESPACE NAME STATUS SOURCEHASH clusterrole.rbac.authorization.k8s.io/namespace-readers Current 43a1a38 clusterrolebinding.rbac.authorization.k8s.io/namespace-readers Current 43a1a38 namespace/dev Current 43a1a38 namespace/prod Current 43a1a38 prod rolebinding.rbac.authorization.k8s.io/sre-admin Current 43a1a38 onprem.k8s.local -------------------- :root-sync ssh://student-00-d32e55d77a02@qwiklabs.net@source.developers.google.com:2022/p/qwiklabs-gcp-01-d08087e65819/r/anthos_config@master SYNCED @ 2024-09-25 07:56:22 +0000 UTC 43a1a388b924b18c985ee230c8b316fe2711c8b1 Managed resources: NAMESPACE NAME STATUS SOURCEHASH clusterrole.rbac.authorization.k8s.io/namespace-readers Current 43a1a38 clusterrolebinding.rbac.authorization.k8s.io/namespace-readers Current 43a1a38 namespace/dev Current 43a1a38 namespace/prod Current 43a1a38 prod rolebinding.rbac.authorization.k8s.io/sre-admin Current 43a1a38

Task 5. Verify that the configurations have been applied to your clusters

1. Set your kubectl context and list the Namespaces on the gke cluster:

   kubectx gke kubectl get namespaces
   • Do you see both dev and prod Namespaces?

2. List the ClusterRoles the gke cluster:

   kubectl get clusterroles
   • Do you see an entry for namespace-readers?

3. List the ClusterRolesBindings the gke cluster:

   kubectl get clusterrolebindings
   • Do you see an entry for namespace-readers?

4. Describe the ClusterRoleBinding for namespace-readers:

   kubectl describe clusterrolebinding namespace-readers
   • Has Cheryl been assigned the role?

5. Check the RoleBindings for the dev Namespace:

   kubectl get rolebindings -n dev
   • Are there any bindings for the dev Namespace?

6. Check the RoleBindings for the prod Namespace:

   kubectl get rolebindings -n prod
   • Are there any bindings for the prod Namespace? Note that the Namespace selector limited application of this configuration to only the prod Namespace.

   Your configurations, stored in your Cloud Source Repository, have been applied to the gke cluster. Now, check to see if they have been applied to the onprem cluster.

7. Set your kubectl context:

   kubectx onprem.k8s.local

8. Repeat the steps that you performed against the gke cluster. Verify that the changes have applied to the onprem cluster as well.

Task 7. Review automated drift management

In this task, you verify that Anthos Config Management keeps objects in sync with the configs in your repo, even if someone makes manual changes.

Set up tmux panes in Cloud Shell

You are going to configure three Cloud Shell panes so that you can issue commands in one pane and watch the effects on the two clusters in the other panes.

1. Split the session screen with the tmux utility built-into Cloud Shell by typing <Ctrl>+b, then %. You should see 2 panes in the Cloud Shell.

   Any time you interact with tmux, you'll start with the <Ctrl>+b combination, which signals a command to tmux.

2. Switch to the left-hand pane by typing:

   • <Ctrl>+b
   • <left-arrow>

3. Resize the left-hand pane by doing the following:

   • Type <Ctrl>+b to begin interaction with tmux
   • Type : to get a tmux command prompt
   • Type resize-pane -L 35 to make the left-hand pane narrower

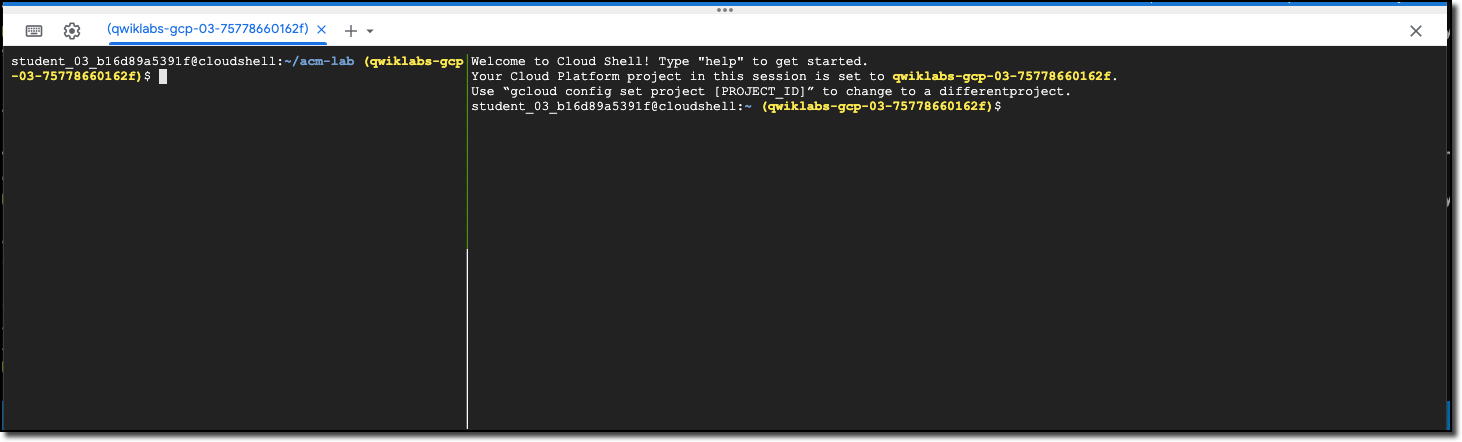

   Your panes should look like this:



4. Switch to the right-hand pane by typing:

   • <Ctrl>+b
   • <right-arrow>

5. In the right-hand pane, split the pane by typing:

   • <Ctrl>+b
   • %

   You should now have 3 panes that are roughly the same width.



Try deleting an object managed by Anthos Config Management

1. Switch the the left-hand pane (<Ctrl>+b, <right-arrow>), set the kubectl context, and have kubectl watch for changes to the ClusterRoleBinding for namespace-readers on the gke cluster:

   clear kubectx gke kubectl get clusterrolebinding namespace-readers --watch-only

2. Switch the the middle pane (<Ctrl>+b, <right-arrow>), set the kubectl context and have kubectl watch for changes to the ClusterRoleBinding for namespace-readers on the onprem cluster:

   clear kubectx onprem.k8s.local kubectl get clusterrolebinding namespace-readers --watch-only

3. Switch the the right-hand pane (<Ctrl>+b, <right-arrow>), and delete the ClusterRoleBinding on both clusters:

   clear kubectx gke kubectl delete clusterrolebinding namespace-readers kubectx onprem.k8s.local kubectl delete clusterrolebinding namespace-readers

   You should see two updates display in each of the panes where you are watching for object changes. One indicating the deletion of the object, and one showing the creation of the object to have the cluster comply with the defined config.

4. In the right-hand pane, confirm that the ClusterRoleBinding has been recreated on the gke cluster:

   kubectx gke kubectl describe ClusterRoleBinding namespace-readers

   Output:

   Name: namespace-readers Labels: app.kubernetes.io/managed-by=configmanagement.gke.io Annotations: configmanagement.gke.io/cluster-name: gke configmanagement.gke.io/managed: enabled configmanagement.gke.io/source-path: cluster/clusterrolebinding-namespace-reader.yaml configmanagement.gke.io/token: 7275a22cd4315133d180139e0ee6a444ced1b86e Role: Kind: ClusterRole Name: namespace-reader Subjects: Kind Name Namespace ---- ---- --------- User cheryl@anthos-labs.com

5. Repeat the process for the onprem cluster.

Try updating an object managed by Anthos Config Management

1. Switch to the left-hand pane (<Ctrl>+b, <right-arrow>), and cancel the kubectl watch command by typing <Ctrl>+c.

2. Start a new watch command, this time observing changes to the prod Namespace labels on the gke cluster, and display the Namespace config in detail:

   clear kubectx gke kubectl get namespace prod -o custom-columns=NAME:.metadata.labels \ --watch-only

3. Switch to the middle pane (<Ctrl>+b, <right-arrow>), and cancel the kubectl watch command by typing <Ctrl>+c.

4. Start a new watch command, this time observing changes to the prod Namespace labels on the onprem cluster, and display the Namespace config in detail:

   clear kubectx onprem.k8s.local kubectl get namespace prod -o custom-columns=NAME:.metadata.labels \ --watch-only

5. Switch to the right-hand pane (<Ctrl>+b, <right-arrow>), and remove the env: prod label from the prod Namespaces on both clusters:

   clear kubectx gke kubectl label namespace prod env- kubectx onprem.k8s.local kubectl label namespace prod env-

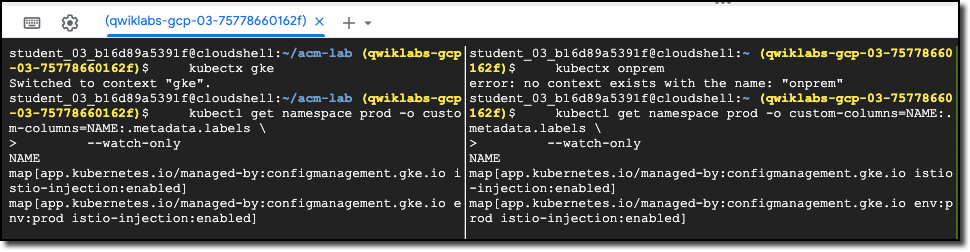

   You should see two messages in each of the panes where you are watching for object changes. The first shows the labels on the namespace after the env:prod label is removed. The second shows the labels after it's been re-added.



Task 8. Update a config in the repo

In this task, you verify that Anthos Config Management updates managed objects when the configs in your repo change.

Review the current configuration and set up watches

1. Switch to the left-hand pane (<Ctrl>+b, <rigt-arrow>), and cancel the kubectl watch command by typing <Ctrl>+c.

2. In the left pane, review the namespace-readers ClusterRoleBinding on the gke cluster:

   clear kubectx gke kubectl get clusterrolebindings namespace-readers -o yaml

   Output:

   ... subjects: - apiGroup: rbac.authorization.k8s.io kind: User name: cheryl@anthos_labs.com

3. Configure kubectl to watch for changes to the subjects in this ClusterRoleBinding on the gke cluster:

   clear kubectx gke kubectl get clusterrolebinding namespace-readers -o \ custom-columns=NAME:.subjects --watch-only

4. Switch to the middle pane (<Ctrl>+b, <right-arrow>), and cancel the kubectl watch command by typing <Ctrl>+c.

5. In the middle pane, review the namespace-readers ClusterRoleBinding on the oprem cluster:

   clear kubectx onprem.k8s.local kubectl get clusterrolebindings namespace-readers -o yaml

   Output:

   ... subjects: - apiGroup: rbac.authorization.k8s.io kind: User name: cheryl@anthos_labs.com

6. Configure kubectl to watch for changes to the subjects in this ClusterRoleBinding on the onprem cluster:

   clear kubectx onprem.k8s.local kubectl get clusterrolebinding namespace-readers -o \ custom-columns=NAME:.subjects --watch-only

7. Switch to the right-hand pane (<Ctrl>+b, <right-arrow>), and clear the pane:

   clear

Update your cluster configuration repo

1. Using the Cloud Shell Code Editor, edit the configuration file for the ClusterRoleBinding:

   edit ~/acm-lab/training-data-analyst/courses/ahybrid/v1.0/AHYBRID071/config/cluster/clusterrolebinding-namespace-readers.yaml

2. Add a new User block to the subjects field for jane@anthos_labs.com. You can copy the entire cheryl@anthos_labs.com User, to a new User, and replace the name with jane@anthos_labs.com.

   The new subjects block has the contents:

   subjects: - kind: User name: cheryl@anthos_labs.com apiGroup: rbac.authorization.k8s.io - kind: User name: jane@anthos_labs.com apiGroup: rbac.authorization.k8s.io

3. Save your changes.

Push the change to your config repo

1. In the right pane, check your config changes are syntactically valid:

   export LAB_DIR=$HOME/acm-lab cd $LAB_DIR ./nomos vet --path=training-data-analyst/courses/ahybrid/v1.0/AHYBRID071/config

   No errors are printed, so the configuration is valid.

2. In the right pane, create a commit, and push the change to your repo:

   cd ~/acm-lab/training-data-analyst/courses/ahybrid/v1.0/AHYBRID071/config git add . git commit -m "Add Jane to namespace-reader." git push origin master

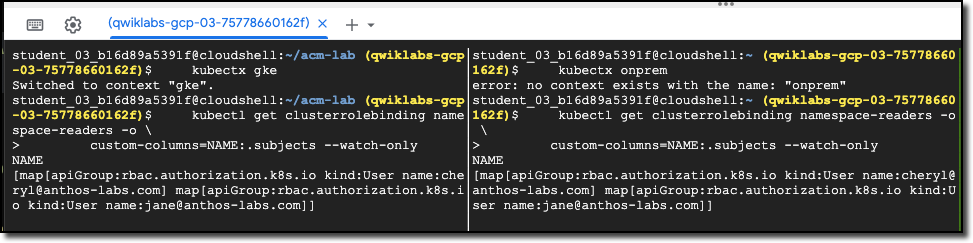

   Within a few seconds of the push being completed, you should see a message in each of the panes where you are watching for object changes. They should show that there are now entries for both Cheryl and Jane.



Review

In this lab, you configured Anthos Config Management and explored some of its useful features. You connected a Git repository for configuration-as-code change-management. You set up a Config Operator to manage your clusters, and you verified that the operator maintains state in your clusters to match your repository.

End your lab

When you have completed your lab, click End Lab. Google Cloud Skills Boost removes the resources you’ve used and cleans the account for you.

You will be given an opportunity to rate the lab experience. Select the applicable number of stars, type a comment, and then click Submit.

The number of stars indicates the following:

• 1 star = Very dissatisfied
• 2 stars = Dissatisfied
• 3 stars = Neutral
• 4 stars = Satisfied
• 5 stars = Very satisfied

You can close the dialog box if you don't want to provide feedback.

For feedback, suggestions, or corrections, please use the Support tab.

Copyright 2022 Google LLC All rights reserved. Google and the Google logo are trademarks of Google LLC. All other company and product names may be trademarks of the respective companies with which they are associated.
