Deploying Apps to Google Cloud

Lab 1 hour 30 minutes universal_currency_alt 5 Credits show_chart Introductory
info This lab may incorporate AI tools to support your learning.
Get access to 700+ labs and courses

Overview

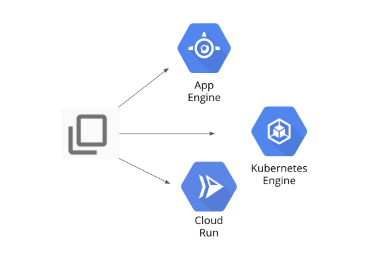

In this lab, you will deploy applications to the Google Cloud services App Engine, Kubernetes Engine, and Cloud Run.

Objectives

In this lab, you will learn how to perform the following tasks:

  • Download a sample app from GitHub
  • Deploy to App Engine
  • Deploy to Kubernetes Engine
  • Deploy to Cloud Run

Set up your lab environment

For each lab, you get a new Google Cloud project and set of resources for a fixed time at no cost.

  1. Sign in to Qwiklabs using an incognito window.

  2. Note the lab's access time (for example, 1:15:00), and make sure you can finish within that time.
    There is no pause feature. You can restart if needed, but you have to start at the beginning.

  3. When ready, click Start lab.

  4. Note your lab credentials (Username and Password). You will use them to sign in to the Google Cloud Console.

  5. Click Open Google Console.

  6. Click Use another account and copy/paste credentials for this lab into the prompts.
    If you use other credentials, you'll receive errors or incur charges.

  7. Accept the terms and skip the recovery resource page.

Task 1. Create a simple Python application

You need some source code to manage. So, you will create a simple Python Flask web application. The application will be only slightly better than "hello world", but it will be good enough to test the pipeline you will build.

  1. In the Cloud Console, click Activate Cloud Shell ().
  2. If prompted, click Continue.

3.9. Enter the following command in Cloud Shell to create a folder called gcp-course:

mkdir gcp-course
  1. Change to the folder you just created:
cd gcp-course
  1. Create a folder called deploying-apps-to-gcp:
mkdir deploying-apps-to-gcp
  1. Change to the folder you just created:
cd deploying-apps-to-gcp
  1. In Cloud Shell, click Open Editor () to open the code editor. If prompted click Open in a new window.
  2. Select the gcp-course > deploying-apps-to-gcp folder in the explorer tree on the left.
  3. Click on deploying-apps-to-gcp.
  4. Click New File.
  5. Name the file main.py and press Enter.
  6. Paste the following code into the file you just created:
from flask import Flask, render_template, request app = Flask(__name__) @app.route("/") def main(): model = {"title": "Hello GCP."} return render_template('index.html', model=model) if __name__ == "__main__": app.run(host='0.0.0.0', port=8080, debug=True, threaded=True)
  1. To save your changes. Press CTRL + S.
  2. Click on the deploying-apps-to-gcp folder.
  3. Click New Folder.
  4. Name the folder templates and press Enter.
  5. Right-click on the templates folder and create a new file called layout.html.
  6. Add the following code and save the file as you did before:
<!doctype html> <html lang="en"> <head> <title>{{model.title}}</title> <!-- Bootstrap CSS --> <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.4.1/css/bootstrap.min.css"> </head> <body> <div class="container"> {% block content %}{% endblock %} <footer></footer> </div> </body> </html>

  1. Also in the templates folder, add another new file called index.html.

  2. Add the following code and save the file as you did before:

{% extends "layout.html" %} {% block content %} <div class="jumbotron"> <div class="container"> <h1>{{model.title}}</h1> </div> </div> {% endblock %}

  1. In Python, application prerequisites are managed using pip. Now you will add a file that lists the requirements for this application.

  2. In the deploying-apps-to-gcp folder (not the templates folder), create a New File and add the following to that file and save it as requirements.txt:

Flask==2.0.3 itsdangerous==2.0.1 Jinja2==3.0.3 werkzeug==2.2.2

Task 2. Define a Docker build

The first step to using Docker is to create a file called Dockerfile. This file defines how a Docker container is constructed. You will do that now.

  1. In the deploying-apps-to-gcp folder, click New File and name the new file Dockerfile.

The file Dockerfile is used to define how the container is built.

  1. Add the following:
FROM python:3.9 WORKDIR /app COPY . . RUN pip install gunicorn RUN pip install -r requirements.txt ENV PORT=8080 CMD exec gunicorn --bind :$PORT --workers 1 --threads 8 main:app
  1. To test the program, type the following command to build a Docker container of the image:
docker build -t test-python .
  1. To run the Docker image, type the following command:
docker run --rm -p 8080:8080 test-python
  1. To see the program running, click Web Preview () in the toolbar of Google Cloud Shell. Then, select Preview on port 8080.

The program should be displayed in a new browser tab.

  1. In Cloud Shell, type Ctrl+C to stop the program.

Task 3. Deploy to App Engine

App Engine is a completely automated deployment platform. It supports many languages, including Python, Java, JavaScript, and Go. To use it, you create a configuration file and deploy your applications with a couple of simple commands. In this task, you create a file named app.yaml and deploy it to App Engine.

  1. In Cloud Shell, click Open Editor (), then click Open in a new window if required.
  2. Select the gcp-course/deploying-apps-to-gcp folder in the explorer tree on the left.
  3. Click New File, name the file app.yaml, and then press Enter.
  4. Paste the following into the file you just created:
runtime: python39
  1. Save your changes.
Note: There are other settings you can add to the app.yaml file, but in this case only the language runtime is required.
  1. In a project, an App Engine application has to be created. This is done just once using the gcloud app create command and specifying the region where you want the app to be created. Click Open Terminal and type the following command. If prompted, click Authorize:
gcloud app create --region={{{project_0.startup_script.app_region| Region}}}
  1. Now deploy your app with the following command:
gcloud app deploy --version=one --quiet Note: This command will take a couple of minutes to complete.

  1. On the Google Cloud console title bar, type App Engine in the Search field, then click App Engine in the Search Results section.

  2. In the upper-right corner of the dashboard is a link to your application, similar to this:

Note: By default, the URL to an App Engine application is in the form of https://project-id.appspot.com.

  1. Click on the link to test your program.

  2. Make a change to the program to see how easy the App Engine makes managing versions.

  3. In the code editor, expand the /deploying-apps-to-gcp folder in the navigation pane on the left. Then, click main.py to open it.

  4. In the main() function, change the title to Hello App Engine as shown below:

@app.route("/") def main(): model = {"title" "Hello App Engine"} return render_template('index.html', model=model)

  1. Click File > Save in the code editor toolbar to save your change.

  2. Now, deploy version two with the following command:

gcloud app deploy --version=two --no-promote --quiet Note: The --no-promote parameter tells App Engine to continue serving requests with the old version. This allows you to test the new version before putting it into production.

  1. When the command completes, return to the App Engine dashboard. Click the link again, and version one will still be returned. It should return Hello GCP. This is because of the --no-promote parameter in the previous command.

  2. On the left, click the Versions tab. Notice that two versions are listed.

Note: You might have to click Refresh to see version two.

  1. Click on the version two link to test it. It should return Hello App Engine.

  2. To migrate production traffic to version two, click Split Traffic at the top. Change the version to two, and click Save.

  3. Give it a minute to complete. Refresh the browser tab that earlier returned Hello GCP. It should now return the new version.

Click Check my progress to verify the objective. Deploy to App Engine

Task 4. Deploy to Kubernetes Engine with Cloud Build and Artifact Registry

Kubernetes Engine allows you to create a cluster of machines and deploy any number of applications to it. Kubernetes abstracts the details of managing machines and allows you to automate the deployment of your applications with simple CLI commands.

To deploy an application to Kubernetes, you first need to create the cluster. Then you need to add a configuration file for each application you will deploy to the cluster.

  1. On the Navigation menu (), click Kubernetes Engine. If a message appears saying the Kubernetes API is being initialized, wait for it to complete.

  2. Click Create Cluster then click Switch to Standard Cluster confirm Switch to Standard Cluster.

  3. Click Zonal for Location type and then select the zone . Accept all the other variables as default then click Create. It will take a couple of minutes for the Kubernetes Engine cluster to be created. When the cluster is ready, a green check appears.

  4. Click the three dots to the right of the cluster and then click Connect.

  5. In the Connect to the cluster screen, click Run in Cloud Shell. This opens Cloud Shell with the connect command entered automatically.

  6. Press Enter to connect to the cluster.

  7. To test your connection, type the following command:

kubectl get nodes

This command simply shows the machines in your cluster. If it works, you're connected.

  1. In Cloud Shell, click Open Editor ().
  2. Expand the gcp-course/deploying-apps-to-gcp folder in the navigation pane on the left. Then, click main.py to open it.
  3. In the main() function, change the title to Hello Kubernetes Engine as shown below:
@app.route("/") def main(): model = {"title" "Hello Kubernetes Engine"} return render_template('index.html', model=model)
  1. Save your change.
  2. Add a file named kubernetes-config.yaml to the gcp-course/deploying-apps-to-gcp folder.
  3. Paste the following code in that file to configure the application:
--- apiVersion: apps/v1 kind: Deployment metadata: name: devops-deployment labels: app: devops tier: frontend spec: replicas: 3 selector: matchLabels: app: devops tier: frontend template: metadata: labels: app: devops tier: frontend spec: containers: - name: devops-demo image: <YOUR IMAGE PATH HERE> ports: - containerPort: 8080 --- apiVersion: v1 kind: Service metadata: name: devops-deployment-lb labels: app: devops tier: frontend-lb spec: type: LoadBalancer ports: - port: 80 targetPort: 8080 selector: app: devops tier: frontend

Note: In the first section of the YAML file above, you are configuring a deployment. In this case, you are deploying 3 instances of your Python web app. Notice the image attribute. You will update this value with your image in a minute after you build it. In the second section, you are configuring a service of the type "load balancer". The load balancer will have a public IP address. Users will access your application through the load balancer.

For more information on Kubernetes deployments and services, see the links below:
  1. In Cloud Shell type the following command to create an Artifact Registry repository named devops-demo:
gcloud artifacts repositories create devops-demo \ --repository-format=docker \ --location={{{ project_0.default_region | "REGION" }}}
  1. To configure Docker to authenticate to the Artifact Registry Docker repository, type the following command:
gcloud auth configure-docker {{{ project_0.default_region | "REGION" }}}-docker.pkg.dev
  1. To use Kubernetes Engine, you need to build a Docker image. Type the following commands to use Cloud Build to create the image and store it in Artifact Registry:
cd ~/gcp-course/deploying-apps-to-gcp gcloud builds submit --tag {{{ project_0.default_region | "REGION" }}}-docker.pkg.dev/$DEVSHELL_PROJECT_ID/devops-demo/devops-image:v0.2 .

  1. When the previous command completes, the image name will be listed in the output. The image name is in the form -docker.pkg.dev/PROJECT_ID/devops-demo/devops-image:v0.2.

  2. Highlight your image name and copy it to the clipboard. Paste that value in the kubernetes-config.yaml file, overwriting the string <YOUR IMAGE PATH HERE>.

You should see something similar to below:

spec: containers: - name: devops-demo image: {{{ project_0.default_region | "REGION" }}}-docker.pkg.dev/PROJECT_ID/devops-demo/devops-image:v0.2 ports:
  1. Type the following Kubernetes command to deploy your application:
kubectl apply -f kubernetes-config.yaml
  1. In the configuration file, three replicas of the application were specified. Type the following command to see whether three instances have been created:
kubectl get pods

Make sure all the pods are ready. If they aren't, wait a few seconds and try again.

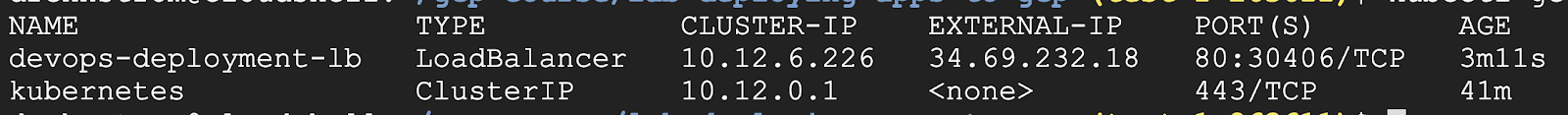

  1. A load balancer was also added in the configuration file. Type the following command to see whether it was created:
kubectl get services

You should see something similar to below:

If the load balancer's external IP address says "pending", wait a few seconds and try again.

  1. When you have an external IP, open a browser tab and make a request to it. It should return Hello Kubernetes Engine. It might take a few seconds to be ready.

Click Check my progress to verify the objective. Deploy to Kubernetes Engine

Task 5. Deploy to Cloud Run

Cloud Run simplifies and automates deployments to Kubernetes. When you use Cloud Run, you don't need a configuration file. You simply choose a cluster for your application. With Cloud Run, you can use a cluster managed by Google, or you can use your own Kubernetes cluster.

To use Cloud Run, your application needs to be deployed using a Docker image and it must be stateless.

  1. Open the Cloud Shell code editor and expand the gcp-course/deploying-apps-to-gcp folder in the navigation pane on the left. Then, click main.py to open it.
  2. In the main() function, change the title to Hello Cloud Run as shown below:
@app.route("/") def main(): model = {"title" "Hello Cloud Run"} return render_template('index.html', model=model)

  1. Save your change.

  2. To use Cloud Run, you need to build a Docker image. In Cloud Shell, type the following commands to use Cloud Build to create the image and store it in Artifact Registry:

cd ~/gcp-course/deploying-apps-to-gcp gcloud builds submit --tag {{{ project_0.default_region | "REGION" }}}-docker.pkg.dev/$DEVSHELL_PROJECT_ID/devops-demo/cloud-run-image:v0.1 .

  1. When the build completes, on the Google Cloud console title bar, type Cloud Run in the Search field, then click Cloud Run in the Products & Pages section.

  2. Click Create service. This enables the Cloud Run API.

  3. Click the Select link in the Container image URL text box and then click Artifact Registry. In the resulting dialog, expand Region-docker.pkg.dev/$DEVSHELL_PROJECT_ID/devops-demo > cloud-run-image and select the image listed. Then click Select.

  4. In Service name, type hello-cloud-run and select region .

  5. For Authentication, select Allow unauthenticated invocations.

  6. In Container(s), Volumes, Networking, Security, select Default in the Execution environment section.

  7. In Revision scaling, set the Maximum number of instances to 6. Leave the rest as defaults.

  8. Finally, click Create.

  9. It shouldn't take long for the service to deploy. When a green check appears, click on the URL that is automatically generated for the application. It should return Hello Cloud Run.

Click Check my progress to verify the objective. Deploy to Cloud Run

Congratulations!

In this lab, you deployed applications to the Google Cloud services App Engine, Kubernetes Engine, and Cloud Run.

End your lab

When you have completed your lab, click End Lab. Google Cloud Skills Boost removes the resources you’ve used and cleans the account for you.

You will be given an opportunity to rate the lab experience. Select the applicable number of stars, type a comment, and then click Submit.

The number of stars indicates the following:

  • 1 star = Very dissatisfied
  • 2 stars = Dissatisfied
  • 3 stars = Neutral
  • 4 stars = Satisfied
  • 5 stars = Very satisfied

You can close the dialog box if you don't want to provide feedback.

For feedback, suggestions, or corrections, please use the Support tab.
