アプリ開発 - Cloud Storage への画像ファイルと動画ファイルの保存: Node.js

ラボ 2時間 universal_currency_alt クレジット: 5 show_chart 入門
info このラボでは、学習をサポートする AI ツールが組み込まれている場合があります。
700 以上のラボとコースにアクセス

概要

このラボでは、オンライン クイズ アプリケーションを拡張して画像や動画を扱えるようにします。ファイルはオブジェクトとして Cloud Storage バケット内に保存します。

クイズ アプリケーションのユーザー インターフェースが変更され、質問追加用のフォームにファイル用のボタンが追加されており、サーバー側アプリケーションで画像データを受け取れるようにハンドラも変更されています。

ここでは、アップロードされたファイルを Cloud Storage 内に保存するコードを追加します。また、オブジェクトを一般公開してから、オブジェクトの URL とその他のアプリケーション データを Google Cloud Datastore 内に保存します。

目標

このラボでは、次のタスクの実行方法について学びます。

  • Cloud Storage バケットを作成する。

  • ファイル アップロード用の UI とコードの変更内容を確認する。

  • アップロードされたファイルのデータを Cloud Storage に保存するコードを記述する。

設定と要件

各ラボでは、新しい Google Cloud プロジェクトとリソースセットを一定時間無料で利用できます。

  1. Qwiklabs にシークレット ウィンドウでログインします。

  2. ラボのアクセス時間(例: 1:15:00)に注意し、時間内に完了できるようにしてください。
    一時停止機能はありません。必要な場合はやり直せますが、最初からになります。

  3. 準備ができたら、[ラボを開始] をクリックします。

  4. ラボの認証情報(ユーザー名パスワード)をメモしておきます。この情報は、Google Cloud Console にログインする際に使用します。

  5. [Google Console を開く] をクリックします。

  6. [別のアカウントを使用] をクリックし、このラボの認証情報をコピーしてプロンプトに貼り付けます。
    他の認証情報を使用すると、エラーが発生したり、料金の請求が発生したりします。

  7. 利用規約に同意し、再設定用のリソースページをスキップします。

Google Cloud Shell の有効化

Google Cloud Shell は、開発ツールと一緒に読み込まれる仮想マシンです。5 GB の永続ホーム ディレクトリが用意されており、Google Cloud で稼働します。

Google Cloud Shell を使用すると、コマンドラインで Google Cloud リソースにアクセスできます。

  1. Google Cloud コンソールで、右上のツールバーにある [Cloud Shell をアクティブにする] ボタンをクリックします。

  2. [続行] をクリックします。

環境がプロビジョニングされ、接続されるまでしばらく待ちます。接続した時点で認証が完了しており、プロジェクトに各自のプロジェクト ID が設定されます。次に例を示します。

gcloud は Google Cloud のコマンドライン ツールです。このツールは、Cloud Shell にプリインストールされており、タブ補完がサポートされています。

  • 次のコマンドを使用すると、有効なアカウント名を一覧表示できます。
gcloud auth list

出力:

Credentialed accounts: - @.com (active)

出力例:

Credentialed accounts: - google1623327_student@qwiklabs.net
  • 次のコマンドを使用すると、プロジェクト ID を一覧表示できます。
gcloud config list project

出力:

[core] project =

出力例:

[core] project = qwiklabs-gcp-44776a13dea667a6 注: gcloud ドキュメントの全文については、 gcloud CLI の概要ガイド をご覧ください。

ケーススタディ用アプリケーションを確認する

このセクションでは、クイズ アプリケーションが格納されている Git リポジトリのクローンを作成し、このアプリケーションを実行します。

Cloud Shell でソースコードのクローンを作成する

  1. Cloud Shell で、クラスのリポジトリのクローンを作成します。

git clone --depth=1 https://github.com/GoogleCloudPlatform/training-data-analyst
  1. 作業ディレクトリへのショートカットとしてソフトリンクを作成します。

ln -s ~/training-data-analyst/courses/developingapps/v1.3/nodejs/cloudstorage cloudstorage

ケーススタディ用アプリケーションを構成、実行する

  1. このラボのサンプル ファイルが格納されているディレクトリに移動します。

cd ~/cloudstorage/start
  1. 次のコマンドを実行して、アプリケーションを構成します。

. prepare_environment.sh
  1. 次のコマンドを実行して、アプリケーションを実行します。

npm start

[進行状況を確認] をクリックして、目標に沿って進んでいることを確認します。 ケーススタディ用アプリケーションを構成する

ケーススタディ用アプリケーションを確認する

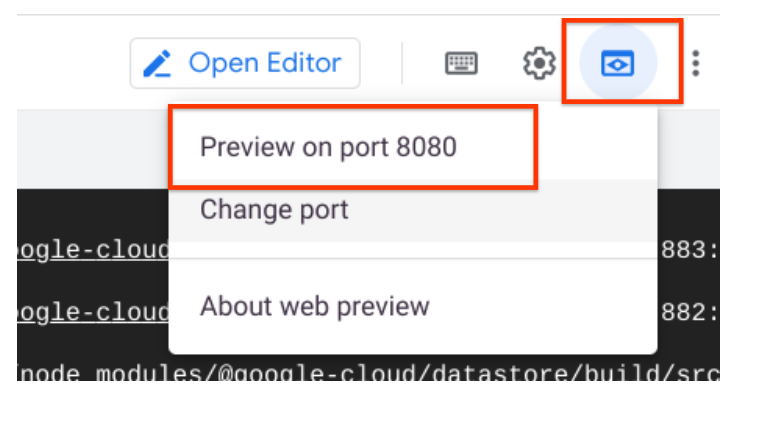

  1. 「ウェブでプレビュー」アイコン > [ポート 8080 でプレビュー] をクリックして、アプリケーションを表示します。

  1. ツールバーの [Create Question] をクリックします。

ケーススタディ用アプリケーションのコードを確認する

このセクションでは、Cloud Shell テキスト エディタを使用して、このケーススタディ用アプリケーションのコードを確認します。

Cloud Shell エディタを起動する

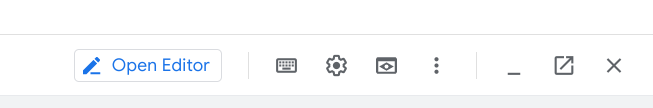

  1. Cloud Shell で [エディタを開く] をクリックし、[新しいウィンドウで開く] をクリックします。

  1. エディタの左側にあるファイル ブラウザ パネルを使用して、/cloudstorage/start フォルダに移動します。

Express ウェブ アプリケーションを確認する

  1. .../server/web-app/views/questions フォルダにある [add.pug] ファイルを選択します。
  1. .../server/web-app フォルダにある [questions.js] ファイルを選択します。
  1. .../server/gcp/cloudstorage.js ファイルを選択します。

Cloud Storage バケットを作成する

このセクションでは、Cloud Storage バケットを作成し、それを参照する環境変数をエクスポートします。

Cloud Storage バケットを作成する

  1. Cloud Shell に戻って [ターミナルを開く] をクリックし、Ctrl+C キーを押してアプリケーションを停止します。

  2. 次のコマンドを実行して、<プロジェクト ID>-media という名前の Cloud Storage バケットを作成します。

gsutil mb gs://$DEVSHELL_PROJECT_ID-media
  1. 次のコマンドを実行して、Cloud Storage バケット名を GCLOUD_BUCKET という名前の環境変数としてエクスポートします。

export GCLOUD_BUCKET=$DEVSHELL_PROJECT_ID-media

[進行状況を確認] をクリックして、目標に沿って進んでいることを確認します。 Cloud Storage バケットを作成する

Cloud Storage にオブジェクトを追加する

このセクションでは、アップロードされたファイルを Cloud Storage に保存するコードを記述します。

Node.js の Cloud Storage モジュールをインポートして使用する

  1. エディタで、...server/gcp/cloudstorage.js ファイルの先頭に移動します。

  2. @google-cloud/storage モジュールを読み込み、Storage という名前の定数に割り当てます。

  3. // TODO: Load the module for Cloud Storage const {Storage} = require('@google-cloud/storage'); // END TODO
  4. Storage(...) ファクトリを使用して、storage という名前の Cloud Storage クライアントを作成します。

  5. // TODO: Create the storage client // The Storage(...) factory function accepts an options // object which is used to specify which project's Cloud // Storage buckets should be used via the projectId // property. // The projectId is retrieved from the config module. // This module retrieves the project ID from the // GCLOUD_PROJECT environment variable. const storage = new Storage({ projectId: config.get('GCLOUD_PROJECT') }); // END TODO
  6. GCLOUD_BUCKET という名前の文字列定数を宣言し、環境変数として先ほどエクスポートしたバケット名で初期化します。

  7. // TODO: Get the GCLOUD_BUCKET environment variable // Recall that earlier you exported the bucket name into an // environment variable. // The config module provides access to this environment // variable so you can use it in code const GCLOUD_BUCKET = config.get('GCLOUD_BUCKET'); // END TODO
  8. bucket という名前の定数を宣言して、Cloud Storage バケットを参照します。

  9. // TODO: Get a reference to the Cloud Storage bucket const bucket = storage.bucket(GCLOUD_BUCKET); // END TODO

Cloud Storage にファイルを送信するコードを記述する

sendUploadToGCS(req, res, next) ハンドラで、Cloud Storage クライアントを使用して Cloud Storage バケットにファイルをアップロードし、一般公開します。

  1. バケット内の Cloud Storage の file オブジェクトへの参照を取得します。

  2. // TODO: Get a reference to the new object const file = bucket.file(oname); // END TODO
  3. Cloud Storage オブジェクトにデータを送信するための書き込み可能なストリームを作成し、オブジェクトの MIME タイプを渡します。

  4. // TODO: Create a stream to write the file into // Cloud Storage // The uploaded file's MIME type can be retrieved using // req.file.mimetype. // Cloud Storage metadata can be used for many purposes, // including establishing the type of an object. const stream = file.createWriteStream({ metadata: { contentType: req.file.mimetype } }); // END TODO
  5. ストリームにイベント ハンドラを 2 つ追加します。1 つ目のハンドラでエラーを処理します。2 つ目のハンドラはデータのアップロード終了時に呼び出します。

    エラー処理用のイベント ハンドラで、次に処理する Express ミドルウェアを呼び出します。

  6. // TODO: Attach two event handlers (1) error // Event handler if there's an error when uploading stream.on('error', err => { // TODO: If there's an error move to the next handler next(err); // END TODO }); // END TODO
  7. 終了時のイベント ハンドラで、ファイルを一般公開し、新しい公開 URL を参照する新しいプロパティを Datastore エンティティに設定します。

  8. // TODO: Attach two event handlers (2) finish // The upload completed successfully stream.on('finish', () => { // TODO: Make the object publicly accessible file.makePublic().then(() => { // TODO: Set a new property on the file for the // public URL for the object // Cloud Storage public URLs are in the form: // https://storage.googleapis.com/[BUCKET]/[OBJECT] // Use an ECMAScript template literal (`https://...`)to // populate the URL with appropriate values for the bucket // ${GCLOUD_BUCKET} and object name ${oname} req.file.cloudStoragePublicUrl = `https://storage.googleapis.com/${GCLOUD_BUCKET}/${oname}`; // END TODO // TODO: Invoke the next middleware handler next(); // END TODO }); // END TODO }); // END TODO
  9. sendUploadToGCS(req, res, next) ハンドラの最後で、ファイルのデータを Cloud Storage にアップロードするために、end() メソッドを呼び出してファイルをストリームに書き込みます

  10. // TODO: End the stream to upload the file's data stream.end(req.file.buffer); // END TODO

cloudstorage.js

上記の変更をして、ファイルは次のようになります:

'use strict'; const config = require('../config'); // TODO: Load the module for Cloud Storage const {Storage} = require('@google-cloud/storage'); // END TODO // TODO: Create the storage client // The Storage(...) factory function accepts an options // object which is used to specify which project's Cloud // Storage buckets should be used via the projectId // property. // The projectId is retrieved from the config module. // This module retrieves the project ID from the // GCLOUD_PROJECT environment variable. const storage = new Storage({ projectId: config.get('GCLOUD_PROJECT') }); // END TODO // TODO: Get the GCLOUD_BUCKET environment variable // Recall that earlier you exported the bucket name into an // environment variable. // The config module provides access to this environment // variable so you can use it in code const GCLOUD_BUCKET = config.get('GCLOUD_BUCKET'); // END TODO // TODO: Get a reference to the Cloud Storage bucket const bucket = storage.bucket(GCLOUD_BUCKET); // END TODO // Express middleware that will automatically pass uploads to Cloud Storage. // req.file is processed and will have a new property: // * ``cloudStoragePublicUrl`` the public url to the object. // [START sendUploadToGCS] function sendUploadToGCS(req, res, next) { // The existing code in the handler checks to see if there // is a file property on the HTTP request - if a file has // been uploaded, then Multer will have created this // property in the preceding middleware call. if (!req.file) { return next(); } // In addition, a unique object name, oname, has been // created based on the file's original name. It has a // prefix generated using the current date and time. // This should ensure that a new file upload won't // overwrite an existing object in the bucket const oname = Date.now() + req.file.originalname; // TODO: Get a reference to the new object const file = bucket.file(oname); // END TODO // TODO: Create a stream to write the file into // Cloud Storage // The uploaded file's MIME type can be retrieved using // req.file.mimetype. // Cloud Storage metadata can be used for many purposes, // including establishing the type of an object. const stream = file.createWriteStream({ metadata: { contentType: req.file.mimetype } }); // END TODO // TODO: Attach two event handlers (1) error // Event handler if there's an error when uploading stream.on('error', err => { // TODO: If there's an error move to the next handler next(err); // END TODO }); // END TODO // TODO: Attach two event handlers (2) finish // The upload completed successfully stream.on('finish', () => { // TODO: Make the object publicly accessible file.makePublic().then(() => { // TODO: Set a new property on the file for the // public URL for the object // Cloud Storage public URLs are in the form: // https://storage.googleapis.com/[BUCKET]/[OBJECT] // Use an ECMAScript template literal (`https://...`)to // populate the URL with appropriate values for the bucket // ${GCLOUD_BUCKET} and object name ${oname} req.file.cloudStoragePublicUrl = `https://storage.googleapis.com/${GCLOUD_BUCKET}/${oname}`; // END TODO // TODO: Invoke the next middleware handler next(); // END TODO }); // END TODO }); // END TODO // TODO: End the stream to upload the file's data stream.end(req.file.buffer); // END TODO } // [END sendUploadToGCS] // Multer handles parsing multipart/form-data requests. // This instance is configured to store images in memory. // This makes it straightforward to upload to Cloud Storage. // [START multer] const Multer = require('multer'); const multer = Multer({ storage: Multer.MemoryStorage, limits: { fileSize: 40 * 1024 * 1024 // no larger than 40mb } }); // [END multer] module.exports = { sendUploadToGCS, multer };

アプリケーションを実行し、Cloud Storage オブジェクトを作成する

  1. ...server/gcp/cloudstorage.js ファイルを保存し、Cloud Shell コマンドに戻ります。
  2. npm start」と入力して、アプリケーションを開始します。
  3. この画像ファイルをローカルマシンにダウンロードします。
  4. Cloud Shell で「ウェブでプレビュー」アイコン > [ポート 8080 でプレビュー] をクリックし、クイズ アプリケーションをプレビューします。
  5. [Create Question] をクリックします。
  6. フォームに次の値を入力して、[Save] をクリックします。

フォームの項目

Author

[自分の名前]

Quiz

Google Cloud Platform

Title

Which product does this logo relate to?

画像

先ほどダウンロードした Google-Cloud-Storage-Logo.svg ファイルをアップロードします

Answer 1

App Engine

Answer 2

Cloud Storage([Answer 2] のラジオボタンを選択します)

Answer 3

Compute Engine

Answer 4

Container Engine

  1. Cloud Console に戻り、ナビゲーション メニュー > [Cloud Storage] をクリックします。
  2. [Cloud Storage] > [ブラウザ] ページで、適切なバケット(<プロジェクト ID>-media という名前)をクリックします。

[進行状況を確認] をクリックして、目標に沿って進んでいることを確認します。 アプリケーションを実行し、Cloud Storage オブジェクトを作成する

クライアント アプリケーションを実行し、Cloud Storage の公開 URL をテストする

  1. アプリケーションの URL の末尾に /api/quizzes/gcp を追加します。
  1. アプリケーションのホームページに戻り、[Take Test] をクリックします。
  2. [GCP] をクリックし、各質問に答えます。

ラボを終了する

ラボが完了したら、[ラボを終了] をクリックします。ラボで使用したリソースが Google Cloud Skills Boost から削除され、アカウントの情報も消去されます。

ラボの評価を求めるダイアログが表示されたら、星の数を選択してコメントを入力し、[送信] をクリックします。

星の数は、それぞれ次の評価を表します。

  • 星 1 つ = 非常に不満
  • 星 2 つ = 不満
  • 星 3 つ = どちらともいえない
  • 星 4 つ = 満足
  • 星 5 つ = 非常に満足

フィードバックを送信しない場合は、ダイアログ ボックスを閉じてください。

フィードバックやご提案の送信、修正が必要な箇所をご報告いただく際は、[サポート] タブをご利用ください。
