Overview

In this series of labs, you take a demo microservices Java application built with the Spring framework and modify it to use an external database server. You adopt some of the best practices for tracing, configuration management, and integration with other services using integration patterns.

In the previous lab, you containerized the application and deployed it to a Google Kubernetes Engine cluster with Kubernetes Engine Monitoring support. That means you can monitor the health of the GKE cluster using Cloud Monitoring. A replica of that environment is preconfigured for you in this lab.

Traditionally, Java applications are monitored through JMX metrics, which provide metrics on such things as thread count and heap usage. In the modern cloud world where you monitor more than just the Java stack, you need to use more generic metrics formats, such as Prometheus.

Kubernetes Engine Monitoring aggregates logs, events, and metrics from your GKE environment to help you understand your application's behavior in production. Prometheus is an optional monitoring tool often used with GKE. If you configure Kubernetes Engine Monitoring with Prometheus support, then services that expose metrics using the Prometheus data model also have their data exported from the cluster and made visible as external metrics in Monitoring.

In this lab, you enable Prometheus monitoring for Kubernetes and then modify the demo application to expose Prometheus metrics from within the application and its backend service. You can then use Monitoring to monitor internal performance metrics from your application while it's running on GKE.

Objectives

In this lab, you learn how to perform the following tasks:

• Enable Monitoring for GKE.
• Enable Prometheus monitoring in a GKE cluster.
• Expose Prometheus metrics from inside a Spring Boot application.
• Explore live application metrics using Monitoring.

Setup and requirements

How to start your lab and sign in to the Console

1. Click the Start Lab button. If you need to pay for the lab, a pop-up opens for you to select your payment method. On the left is a panel populated with the temporary credentials that you must use for this lab.



2. Copy the username, and then click Open Google Console. The lab spins up resources, and then opens another tab that shows the Choose an account page.

   Note: Open the tabs in separate windows, side-by-side.

3. On the Choose an account page, click Use Another Account. The Sign in page opens.



4. Paste the username that you copied from the Connection Details panel. Then copy and paste the password.

Note: You must use the credentials from the Connection Details panel. Do not use your Google Cloud Skills Boost credentials. If you have your own Google Cloud account, do not use it for this lab (avoids incurring charges).

5. Click through the subsequent pages:

• Accept the terms and conditions.
• Do not add recovery options or two-factor authentication (because this is a temporary account).
• Do not sign up for free trials.

After a few moments, the Cloud console opens in this tab.

Note: You can view the menu with a list of Google Cloud Products and Services by clicking the Navigation menu at the top-left.

After you complete the initial sign-in steps, the project dashboard appears.

Task 1. Fetch the application source files

In this task, you clone the source repository files that are used throughout this lab.

1. To begin the lab, click the Activate Cloud Shell button at the top of the Google Cloud Console and, if prompted, click Continue.

2. To activate the code editor, click the Open Editor button on the toolbar of the Cloud Shell window.

3. Click Open in a new Window to open the code editor in a separate tab.

Note: The lab setup includes automated deployment of the services that you configured yourself in previous labs. When the setup is complete, copies of the demo application (configured so that they are ready for this lab session) are put into a Cloud Storage bucket named using the project ID for this lab.

3. In Cloud Shell, enter the following command to create an environment variable that contains the project ID for this lab:

export PROJECT_ID=$(gcloud config list --format 'value(core.project)')

4. Verify that the demo application files were created:

gcloud storage ls gs://$PROJECT_ID Note: If you get a BucketNotFound error, this means that the lab's deployment script has not finished yet. You will need to wait for the DM template to complete before proceeding. This usually takes around 10 minutes upon starting the lab. Please wait a few minutes then retry.

5. Copy the application folders to Cloud Shell:

gcloud storage cp -r gs://$PROJECT_ID/* ~/

6. Make the Maven wrapper scripts executable:

chmod +x ~/guestbook-frontend/mvnw chmod +x ~/guestbook-service/mvnw

Task 2. Enable Monitoring and view the Kubernetes Engine Monitoring dashboard

Create a Monitoring workspace

You will now setup a Monitoring workspace that's tied to your Google Cloud Project. The following steps create a new account that has a free trial of Monitoring.

1. In the Cloud Console, click on Navigation menu > Monitoring.

2. Wait for your workspace to be provisioned.

When the Monitoring dashboard opens, your workspace is ready.

3. Click Dashboards and select GKE to view the Kubernetes Engine Monitoring dashboard.

You may need to wait for a few minutes for the GKE cluster and its resources to become visible to Monitoring.

Task 3. Expose Prometheus metrics from Spring Boot applications

Spring Boot can expose metrics information through Spring Boot Actuator. Micrometer is the metrics collection facility included in Spring Boot Actuator. Micrometer can expose all the metrics using the Prometheus format.

If you are not using Spring Boot, you can expose JMX metrics through Prometheus by using a Prometheus JMX Exporter agent.

In this task, you add the Spring Boot Actuator starter and Micrometer dependencies to the guestbook frontend application.

1. In the Cloud Shell code editor, open ~/guestbook-frontend/pom.xml.
2. Insert the following new dependencies at the end of the <dependencies> section, just before the closing </dependencies> tag:

<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-actuator</artifactId> </dependency> <dependency> <groupId>io.micrometer</groupId> <artifactId>micrometer-registry-prometheus</artifactId> <scope>runtime</scope> </dependency>

3. In the Cloud Shell code editor, open ~/guestbook-frontend/src/main/resources/application.properties.

4. Add the following two properties to configure Spring Boot Actuator to expose metrics on port 9000:

management.server.port=9000 management.endpoints.web.exposure.include=*

5. To send log entries to Cloud Logging, through STDOUT and structured JSON logging, change ~/guestbook-frontend/src/main/resources/logback-spring.xml to use the CONSOLE_JSON appender. Copy and replace the entire contents of the file with the following code:

<configuration> <include resource="org/springframework/boot/logging/logback/defaults.xml" /> <include resource="org/springframework/boot/logging/logback/console-appender.xml" /> <springProfile name="cloud"> <include resource="org/springframework/cloud/gcp/logging/logback-json-appender.xml"/> <root level="INFO"> <appender-ref ref="CONSOLE_JSON"/> </root> </springProfile> <springProfile name="default"> <root level="INFO"> <appender-ref ref="CONSOLE"/> </root> </springProfile> </configuration>

Task 4. Rebuild the containers

In this task, you rebuild the containers and configure the frontend container deployment to expose the prometheus monitoring endpoint.

1. In Cloud Shell, change to the frontend application directory:

cd ~/guestbook-frontend

2. Build the frontend application container:

./mvnw clean compile jib:build

3. While this is compiling, switch back to the Cloud Shell code editor and open ~/kustomize/base/guestbook-frontend-deployment.yaml.

You update the GKE deployment to specify the Prometheus metrics endpoint. With this configuration, Spring Boot Actuator exposes the Prometheus metrics on port 9000, following the path of /actuator/prometheus.

4. Update the GKE manifest to declare the metrics ports. You will be putting this following the kind: Deployment in the containers section:

- name: metrics containerPort: 9000

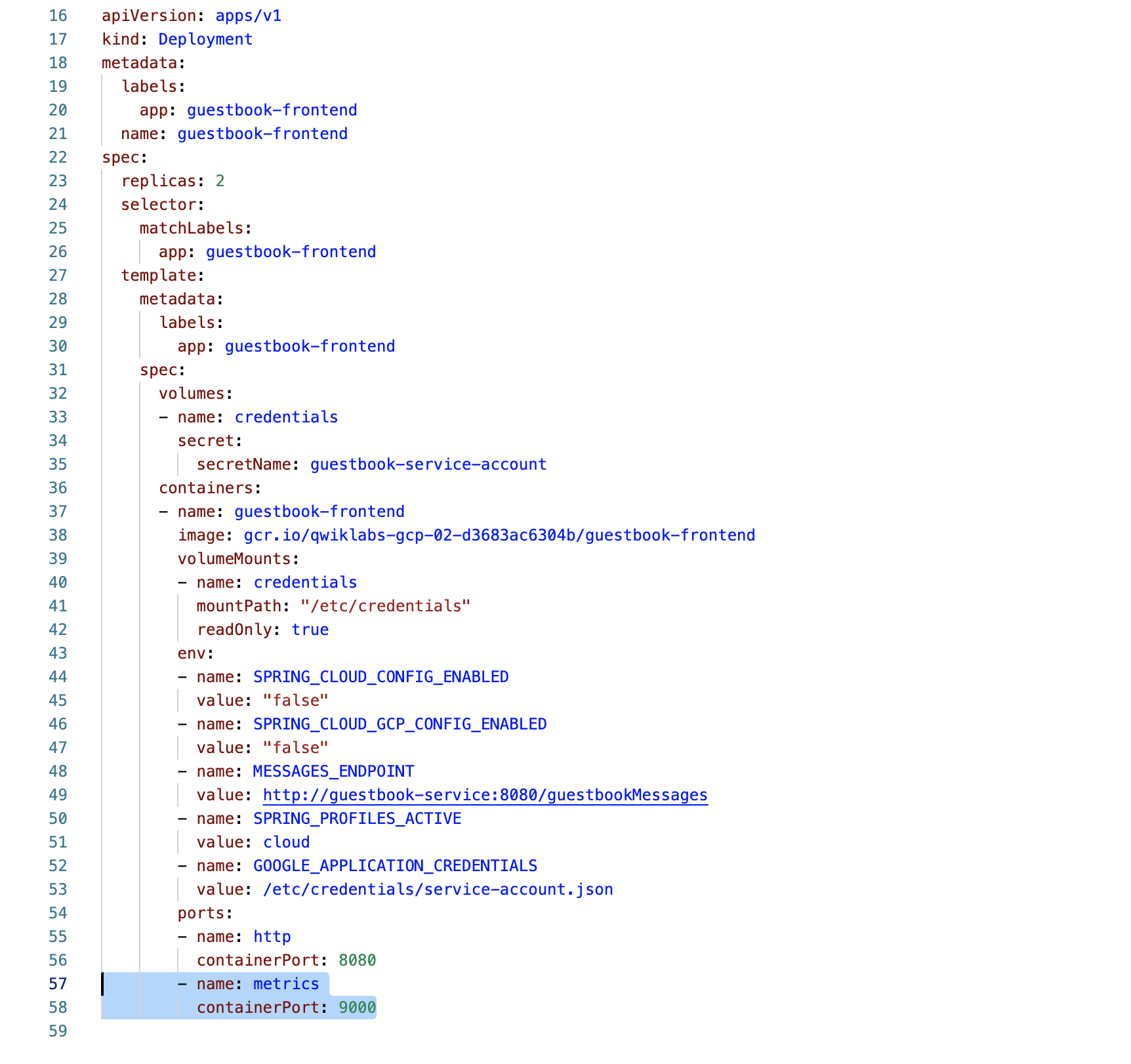

The guestbook-frontend-deployment.yaml file should now look like the following screenshot:

Note: Whitespace is significant in YAML file layouts. The layout of the changes you make must match the screenshot.

5. When the frontend application build has completed in Cloud Shell, change to the guestbook backend service application directory:

cd ~/guestbook-service

6. Build the guestbook backend service application container:

./mvnw clean compile jib:build Note: You haven't made any changes to the backend service application but you have to build the image so that it's available on the gcr.io container repository for the lab when you deploy the full application.

7. Redeploy the manifest:

mkdir -p ~/bin cd ~/bin curl -s "https://raw.githubusercontent.com/kubernetes-sigs/kustomize/master/hack/install_kustomize.sh" | bash export PATH=$PATH:$HOME/bin cd ~/kustomize/base cp ~/service-account.json ~/kustomize/base kustomize build gcloud container clusters get-credentials guestbook-cluster --zone={{{project_0.default_zone|placeholder}}} kustomize edit set namespace default kustomize build | kubectl apply -f -

8. Wait for the pods to restart. Find the pod name for one of the instances:

kubectl get pods -l app=guestbook-frontend

You should see something like the following:

NAME READY STATUS RESTARTS AGE guestbook-frontend-8567fdc8c8-c68vk 1/1 Running 0 5m guestbook-frontend-8567fdc8c8-gvcf5 1/1 Running 0 5m

9. Establish a port forward to one of the Guestbook Frontend pods. Replacing [podnumber] with one of the ID's of the pods you received from the previous command:

kubectl port-forward guestbook-frontend-[podnumber] 9000:9000

Task 5. Install Prometheus and Sidecar

Kubernetes Engine Monitoring can monitor Prometheus metrics from the GKE cluster. Install Prometheus support to the cluster.

1. In a new Cloud Shell tab, install a quickstart Prometheus operator:

export PROMETHEUS_VERSION=v0.58.0 gcloud container clusters get-credentials guestbook-cluster --zone={{{project_0.default_zone|placeholder}}} kubectl apply -f https://raw.githubusercontent.com/coreos/prometheus-operator/${PROMETHEUS_VERSION}/bundle.yaml --force-conflicts=true --server-side

2. Provision Prometheus using the Prometheus Operator:

cd ~/prometheus export PROJECT_ID=$(gcloud config list --format 'value(core.project)') # Make sure the project ID is set echo $PROJECT_ID cat prometheus.yaml | envsubst | kubectl apply -f - kubectl apply -f pod-monitors.yaml Note: The prometheus.yaml file has an extra Prometheus Sidecar that's designed to export the scraped Prometheus metrics to Cloud Operations.

3. Validate Prometheus is running properly and scraping the data. Establish a port forward to Prometheus' port:

pkill java kubectl port-forward svc/prometheus 9090:9090

4. Click Web Preview () in Cloud Shell, then click Preview on port 8080. It should open up a new page.

   Note: The guestbook is not running locally, so you won't see the guestbook page.

5. Now, in the URL, change the beginning of the line from 8080 to 9090 and refresh the page. Your URL should now look something like: https://9090-93a373eb-dd32-458e-b262-3f24c944f746.ql-us-west1-jrts.cloudshell.dev/graph.

6. In the Prometheus console, select Status > Targets.

7. Observe that there are two targets (two pods) being scrapped for metrics.

Task 6. Explore the metrics

1. In the Google Cloud Console, navigate to the Operations > Monitoring.

2. Click Metrics Explorer.

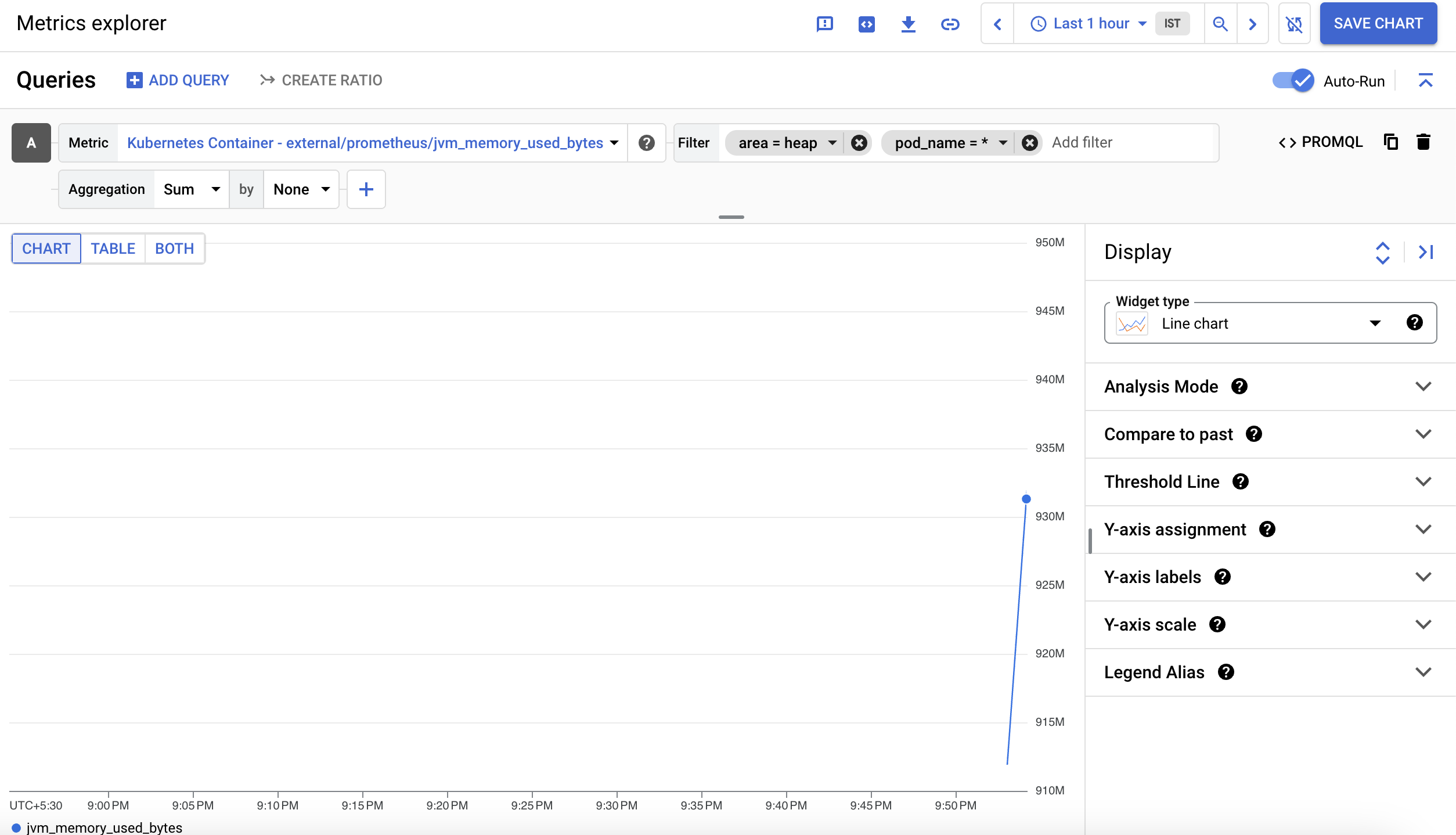

3. In the Metrics Explorer, for Select a Metric, uncheck Active, and then select Kubernetes Container > Prometheus and select jvm_memory_used_bytes.

4. Click Apply.

   Note: It may take a few minutes for the Prometheus metrics to show up in the Metrics Explorer.

   The JVM memory has multiple dimensions (for example, Heap versus Non-Heap and Eden Space versus Metaspace).

5. In Filter, click +Add Filter.

6. For the Metric labels, select area, set the Value to heap.

7. Again, in Filter, for Resource Labels select pod_name.

8. For, Aggregation, select Sum.

   These options build a graph of current heap usage of the frontend application.



Task 7. Review

In this lab, you enabled Monitoring for GKE. You also enabled Prometheus monitoring in a GKE cluster, and exposed Prometheus metrics from inside a Spring Boot application. Finally, you explored live application metrics using Monitoring.
