Overview

This lab is the first in a series of labs, each of which is intended to build skills related to the setup and operation of Anthos clusters on bare metal. You prepare infrastructure, create the admin workstation, create admin and user clusters, deploy workloads, and manage observability configurations.

Bare metal doesn't always mean bare metal

Anthos clusters on bare metal can indeed run on bare metal servers, but can also run on virtual machines in VMware, AWS, or even GCE. Doing bare metal installs doesn't take direct advantage of VMware, AWS, or GKE APIs, it uses a more generic approach to making Anthos work on your cluster.

In this lab, you run Anthos clusters on bare metal atop of GCE VMs. This does require a little extra work as the load balancer VMs need Layer 2 connectivity, so you need to configure the VMs to use VXLAN, which encapsulates Layer 2 connections on a Layer 3 network. In a pure bare metal deployment, you would just skip this step and everything else would remain the same.

Objectives

In this lab, you learn how to perform the following tasks:

• Configure your network, including firewall rules and Layer 2 connectivity.
• Prepare your admin workstation and cluster servers, including SSH setup and OS configuration.
• Install the Anthos on bare metal admin cluster on the created infrastructure.

Setup and requirements

In this task, you use Qwiklabs and perform initialization steps for your lab.

For each lab, you get a new Google Cloud project and set of resources for a fixed time at no cost.

1. Sign in to Qwiklabs using an incognito window.

2. Note the lab's access time (for example, 1:15:00), and make sure you can finish within that time.
   There is no pause feature. You can restart if needed, but you have to start at the beginning.

3. When ready, click Start lab.

4. Note your lab credentials (Username and Password). You will use them to sign in to the Google Cloud Console.

5. Click Open Google Console.

6. Click Use another account and copy/paste credentials for this lab into the prompts.
   If you use other credentials, you'll receive errors or incur charges.

7. Accept the terms and skip the recovery resource page.

After you complete the initial sign-in steps, the project dashboard appears.

8. Click Select a project, highlight your Google Cloud Project ID, and click Open to select your project.

Activate Google Cloud Shell

Google Cloud Shell is a virtual machine that is loaded with development tools. It offers a persistent 5GB home directory and runs on the Google Cloud.

Google Cloud Shell provides command-line access to your Google Cloud resources.

1. In Cloud console, on the top right toolbar, click the Open Cloud Shell button.



2. Click Continue.

It takes a few moments to provision and connect to the environment. When you are connected, you are already authenticated, and the project is set to your PROJECT_ID. For example:

gcloud is the command-line tool for Google Cloud. It comes pre-installed on Cloud Shell and supports tab-completion.

• You can list the active account name with this command:

Output:

Example output:

• You can list the project ID with this command:

Output:

Example output:

Task 1. Confirm your network setup

To reflect real-world best practices, your project has been configured as follows:

• The Default network has been deleted.
• A custom subnet network has been created.
• Two firewall rules have been created. The first allows traffic from Identity Aware Proxy (IAP), so you can SSH to internal VMs without opening port 22 to the internet. The second is used to allow vxlan networking - more on this later in the lab.

Check the starting network configuration

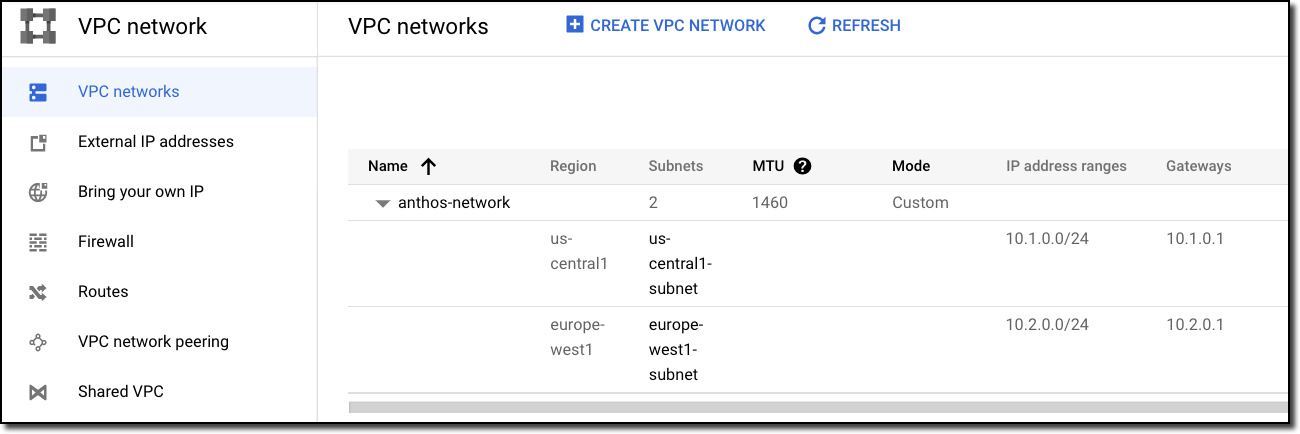

1. In the Console, go to Navigation > VPC network > VPC networks and verify that you have a single custom subnet network. It should look like this:

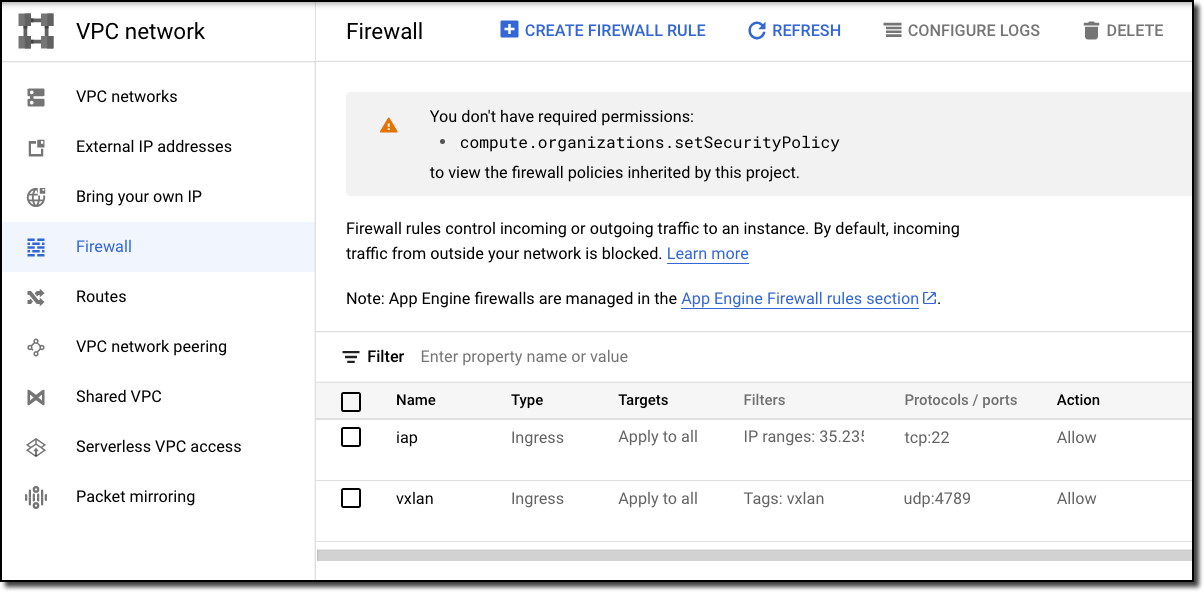

2. Go to Navigation > VPC network > Firewall and verify that you have two firewall rules - one that only allows inbound SSH traffic via IAP, and one that enables vxlan traffic. It should look like this:



Task 2. Create your server infrastructure

When you create Anthos clusters in Google Cloud, AWS, or VMware, you typically use an environment-specific installation process that takes advantage of native APIs.

When you create a bare metal cluster, the installation process doesn't automatically create machines for you (typically, they are physical machines so they can't be created out of thin air). That doesn't mean, however, that you can't create "bare metal" clusters running on VMs in any of those environments.

In this lab, you create a "bare metal" cluster on GCE VMs. It behaves almost identically to a bare metal cluster running on physical devices in your data center. The lab instructions highlight where the installation or administration deviates from a pure bare metal scenario.

You will be building two clusters in the following labs (see diagram below). The admin cluster, which you build in this lab, has a control plane node and no worker nodes. The user cluster has a control plane node, and a worker node. In a production environment, you might consider using three nodes for high availability of both the data and the control plane.

Initialize state

• In Cloud Shell, initialize environment variables you use in later commands:

  # configure environment variables with project id and zone export PROJECT_ID=$(gcloud config get-value project) export ZONE=us-central1-a # configure environment variable for machine type WS_MACHINE_TYPE=e2-standard-4 CLUSTER_MACHINE_TYPE=e2-standard-4 # configure environment variables for server names VM_PREFIX=abm VM_WS=$VM_PREFIX-ws VM_A_CP1=$VM_PREFIX-admin-cp1 VM_U_CP1=$VM_PREFIX-user-cp1 VM_U_W1=$VM_PREFIX-user-w1 # create arrays of the server names declare -a VMs=("$VM_WS" "$VM_A_CP1" "$VM_U_CP1" "$VM_U_W1") declare -a ADMIN_CP_VMs=("$VM_A_CP1") declare -a USER_CP_VMs=("$VM_U_CP1") declare -a USER_WORKER_VMs=("$VM_U_W1") declare -a LB_VMs=("$VM_A_CP1" "$VM_U_CP1") # create an array to hold the IP addresses of the servers declare -a IPs=()

Build the GCE VMs that act as bare metal servers

1. Create the VM to be used as your admin workstation:

   gcloud compute instances create $VM_WS \ --image-family=ubuntu-2004-lts \ --image-project=ubuntu-os-cloud \ --zone=${ZONE} \ --boot-disk-size 128G \ --boot-disk-type pd-ssd \ --can-ip-forward \ --network anthos-network \ --subnet us-central1-subnet \ --scopes cloud-platform \ --machine-type $WS_MACHINE_TYPE \ --metadata=os-login=FALSE \ --verbosity=error IP=$(gcloud compute instances describe $VM_WS --zone ${ZONE} \ --format='get(networkInterfaces[0].networkIP)') IPs+=("$IP")

2. Create the VMs used as cluster servers:

   # loop through the array of server names # for each server name, create a GCE VM # add the new VM IP address to IP array for vm in "${VMs[@]:1}" do gcloud compute instances create $vm \ --image-family=ubuntu-2004-lts \ --image-project=ubuntu-os-cloud \ --zone=${ZONE} \ --boot-disk-size 128G \ --boot-disk-type pd-standard \ --can-ip-forward \ --network anthos-network \ --subnet us-central1-subnet \ --scopes cloud-platform \ --machine-type $CLUSTER_MACHINE_TYPE \ --metadata=os-login=FALSE \ --verbosity=error IP=$(gcloud compute instances describe $vm --zone ${ZONE} \ --format='get(networkInterfaces[0].networkIP)') IPs+=("$IP") done

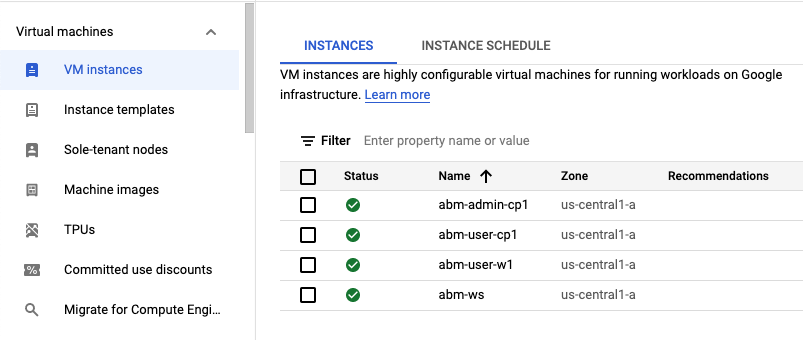

3. In the Console, go to Navigation > Compute Engine > VM instances and confirm the VMs have been created. It should look like this:



4. In Cloud Shell, assign appropriate network tags to the servers, based on their roles (these tags are used to control firewall rule application):

   for vm in "${ADMIN_CP_VMs[@]}" do gcloud compute instances add-tags $vm --zone ${ZONE} \ --tags="cp,admin" done for vm in "${USER_CP_VMs[@]}" do gcloud compute instances add-tags $vm --zone ${ZONE} \ --tags="cp,user" done for vm in "${USER_WORKER_VMs[@]}" do gcloud compute instances add-tags $vm --zone ${ZONE} \ --tags="worker,user" done for vm in "${LB_VMs[@]}" do gcloud compute instances add-tags $vm --zone ${ZONE} \ --tags="lb" done for vm in "${VMs[@]}" do gcloud compute instances add-tags $vm --zone ${ZONE} \ --tags="vxlan" done

Configure the server OS as required for bare metal Anthos

• Disable Uncomplicated Firewall (UFW) on each of the servers:

  for vm in "${VMs[@]}" do echo "Disabling UFW on $vm" gcloud compute ssh root@$vm --zone ${ZONE} --tunnel-through-iap << EOF sudo ufw disable EOF done

Configure the servers for L2 connectivity

1. Configure each VM to implement vxlan functionality; each VM gets an IP address in the 10.200.0.x range:

   i=2 for vm in "${VMs[@]}" do gcloud compute ssh root@$vm --zone ${ZONE} --tunnel-through-iap << EOF # update package list on VM apt-get -qq update > /dev/null apt-get -qq install -y jq > /dev/null # print executed commands to terminal set -x # create new vxlan configuration ip link add vxlan0 type vxlan id 42 dev ens4 dstport 4789 current_ip=\$(ip --json a show dev ens4 | jq '.[0].addr_info[0].local' -r) echo "VM IP address is: \$current_ip" for ip in ${IPs[@]}; do if [ "\$ip" != "\$current_ip" ]; then bridge fdb append to 00:00:00:00:00:00 dst \$ip dev vxlan0 fi done ip addr add 10.200.0.$i/24 dev vxlan0 ip link set up dev vxlan0 EOF i=$((i+1)) done

2. Check the vxlan IPs that have been associated with each of the VMs:

   i=2 for vm in "${VMs[@]}"; do echo $vm; gcloud compute ssh root@$vm --zone ${ZONE} --tunnel-through-iap --command="hostname -I"; i=$((i+1)); done

   You should see output that looks like this:

   abm-ws 10.1.0.3 10.200.0.2 abm-admin-cp1 10.1.0.4 10.200.0.3 abm-user-cp1 10.1.0.5 10.200.0.4 abm-user-w1 10.1.0.6 10.200.0.5

Configure the network firewall rules to allow Anthos traffic

1. Create the firewall rules that allow traffic to the control plane servers:

   gcloud compute firewall-rules create abm-allow-cp \ --network="anthos-network" \ --allow="UDP:6081,TCP:22,TCP:6444,TCP:2379-2380,TCP:10250-10252,TCP:4240" \ --source-ranges="10.0.0.0/8" \ --target-tags="cp"

2. Create the firewall rules that allow inbound traffic to the worker nodes:

   gcloud compute firewall-rules create abm-allow-worker \ --network="anthos-network" \ --allow="UDP:6081,TCP:22,TCP:10250,TCP:30000-32767,TCP:4240" \ --source-ranges="10.0.0.0/8" \ --target-tags="worker"

3. Create the firewall rules that allow inbound traffic to the load balancer nodes. In our case, the load balancer is hosted in the same node as the admin cluster control plane node.

   gcloud compute firewall-rules create abm-allow-lb \ --network="anthos-network" \ --allow="UDP:6081,TCP:22,TCP:443,TCP:7946,UDP:7496,TCP:4240" \ --source-ranges="10.0.0.0/8" \ --target-tags="lb" gcloud compute firewall-rules create allow-gfe-to-lb \ --network="anthos-network" \ --allow="TCP:443" \ --source-ranges="10.0.0.0/8,130.211.0.0/22,35.191.0.0/16" \ --target-tags="lb"

4. Create the firewall rules that allow multi-cluster traffic. This allows the communication between the admin and the user cluster. If you were deploying an Anthos cluster on bare metal of type hybrid or standalone with no other user clusters, you would not need these firewall rules.

   gcloud compute firewall-rules create abm-allow-multi \ --network="anthos-network" \ --allow="TCP:22,TCP:443" \ --source-tags="admin" \ --target-tags="user"

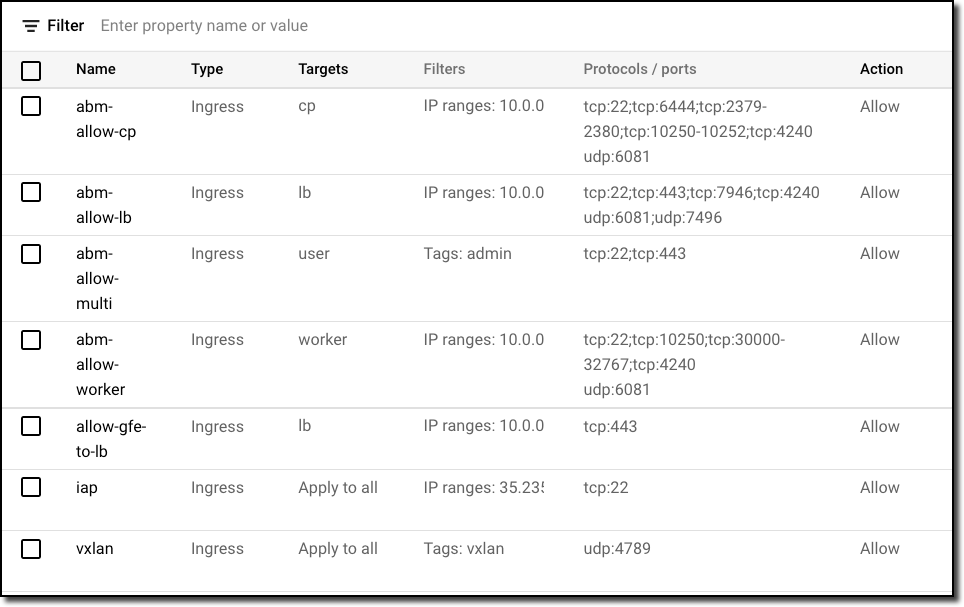

5. In the Console, confirm the creation of the firewall rules by visiting Navigation > VPC network > Firewall. It should look like this:



Congratulations! You have set up your Google Cloud project, your network, and the servers that will be used by your bare metal cluster.

Task 3. Set up the admin workstation

In this task you prepare your admin workstation. This includes:

• Installing and configuring the Google Cloud SDK.
• Installing kubectl and bmctl and Docker.

You also configure your cluster servers to allow SSH sessions from the admin workstation, so it can do its work.

Install tools

1. If you don't already have an open, active Cloud Shell session, open Cloud Shell. Then, initialize key variables in Cloud Shell:

   export PROJECT_ID=$(gcloud config get-value project) export ZONE=us-central1-a # configure environment variables for server names VM_PREFIX=abm VM_WS=$VM_PREFIX-ws VM_A_CP1=$VM_PREFIX-admin-cp1 VM_U_CP1=$VM_PREFIX-user-cp1 VM_U_W1=$VM_PREFIX-user-w1 # create arrays of the server names declare -a VMs=("$VM_WS" "$VM_A_CP1" "$VM_U_CP1" "$VM_U_W1") declare -a ADMIN_CP_VMs=("$VM_A_CP1") declare -a USER_CP_VMs=("$VM_U_CP1") declare -a USER_WORKER_VMs=("$VM_U_W1") declare -a LB_VMs=("$VM_A_CP1" "$VM_U_CP1")

2. SSH from the Cloud Shell VM into the machine you will use as your admin workstation:

   # enable ssh-agent eval `ssh-agent` # add your identity ssh-add ~/.ssh/google_compute_engine # ssh into the admin workstation with authentication forwarding gcloud compute ssh --ssh-flag="-A" root@$VM_WS \ --zone ${ZONE} \ --tunnel-through-iap

3. In the SSH session to your admin workstation, set an environment variable:

   export PROJECT_ID=$(gcloud config get-value project)

4. Install the SDK onto the admin workstation. When prompted, enter the replies shown in the table that follows the command:

   # remove the GCE-specific version of the SDK snap remove google-cloud-sdk # install the SDK as you would on a non-GCE server curl https://sdk.cloud.google.com | bash

   Prompt	Value
   Installation Directory	root (default)
   Do you want to help...	N (default)
   Do you want to continue ($PATH update)	Y (default)
   Enter a path...	/root/.bashrc (default)

5. Restart your shell, then configure the Application Default Credentials on your server:

   # restart your shell exec -l $SHELL # Create keys for a service account with the same permissions as the lab user gcloud iam service-accounts keys create installer.json \ --iam-account=${PROJECT_ID}@${PROJECT_ID}.iam.gserviceaccount.com # set the Application Default Credentials export GOOGLE_APPLICATION_CREDENTIALS=~/installer.json

6. Use gcloud to install kubectl on the admin workstation:

   gcloud components install kubectl

   When prompted if you want to continue, enter Y.

7. Confirm the kubectl is installed and working:

   kubectl config view

   You should see output that looks like this:

   apiVersion: v1 clusters: null contexts: null current-context: "" kind: Config preferences: {} users: null

8. Create a new directory for bmctl and related files:

   mkdir baremetal && cd baremetal

9. Download and configure the bmctl tool, which you use to create and manage the bare metal clusters:

   gsutil cp gs://anthos-baremetal-release/bmctl/1.16.0/linux-amd64/bmctl . chmod a+x bmctl mv bmctl /usr/local/sbin/

10. Confirm that the tool has been installed:

    bmctl version

    You should see output that looks similar to this:

    [2023-08-31 01:16:49+0000] bmctl version: 1.16.0-gke.26, git commit: 97a6fb01605a615292fcaea753be8d4942f9934a, build date: Wed Aug 23 16:18:46 PDT 2023

11. Download and install Docker:

    cd ~ echo "Installing docker" curl -fsSL https://get.docker.com -o get-docker.sh sh get-docker.sh

12. Confirm that Docker was successfully installed:

    docker version

    You should see output that looks similar to this:

    Client: Docker Engine - Community Version: 24.0.5 API version: 1.43 Go version: go1.20.6 Git commit: ced0996 Built: Fri Jul 21 20:35:23 2023 OS/Arch: linux/amd64 Context: default ...

Configure servers to allow SSH from admin workstation

In order for the admin workstation to configure all the servers in your clusters, the bmctl utility must be able to SSH into the servers. You are going to configure the servers to allow this by creating an SSH key pair for the admin workstation, then configuring each cluster server to allow SSH connections using the private key from that key pair.

1. In your SSH session to the admin workstation, create a new key pair with the following command:

   ssh-keygen -t rsa

2. When prompted, enter the following replies:

   Prompt	Value
   Enter file in which...	/root/.ssh/id_rsa (default)
   Enter passphrase	<ENTER> (no passphrase)
   Enter same passphrase...	<ENTER> (no passphrase)

3. Configure all the cluster machines to accept this key for SSH sessions with the following commands:

   VM_PREFIX=abm VM_WS=$VM_PREFIX-ws VM_A_CP1=$VM_PREFIX-admin-cp1 VM_U_CP1=$VM_PREFIX-user-cp1 VM_U_W1=$VM_PREFIX-user-w1 declare -a VMs=("$VM_WS" "$VM_A_CP1" "$VM_U_CP1" "$VM_U_W1") for vm in "${VMs[@]:1}" do ssh-copy-id -o StrictHostKeyChecking=no -i ~/.ssh/id_rsa.pub root@$vm done

4. Install kubectx on the admin workstation with the following commands:

   git clone https://github.com/ahmetb/kubectx /opt/kubectx ln -s /opt/kubectx/kubectx /usr/local/bin/kubectx ln -s /opt/kubectx/kubens /usr/local/bin/kubens

Congratulations! You have set up and configured your admin workstation, and are now ready to use it to create and manage Anthos admin and user clusters.

Task 4. Create your admin cluster

In this task, you will create your admin cluster. This includes:

• Enabling Anthos-related services.
• Creating Anthos-required service accounts.
• Creating and editing the admin cluster configuration file.
• Building and connecting to an Anthos admin cluster.

Create the configuration file

1. In Cloud Shell, where you have an active SSH session into the admin workstation, initialize some key environment variables:

   # configure environment variables export ZONE=us-central1-a export SSH_PRIVATE_KEY=/root/.ssh/id_rsa export LB_CONTROLL_PLANE_NODE=10.200.0.3 export LB_CONTROLL_PLANE_VIP=10.200.0.98 # create additional arrays of the server names declare -a ADMIN_CP_VMs=("$VM_A_CP1") declare -a USER_CP_VMs=("$VM_U_CP1") declare -a USER_WORKER_VMs=("$VM_U_W1") declare -a LB_VMs=("$VM_A_CP1" "$VM_U_CP1")

2. Use the bmctl tool to enable APIs, create service accounts, and generate a configuration file:

   cd ~/baremetal bmctl create config -c abm-admin-cluster --enable-apis --create-service-accounts --project-id=$PROJECT_ID

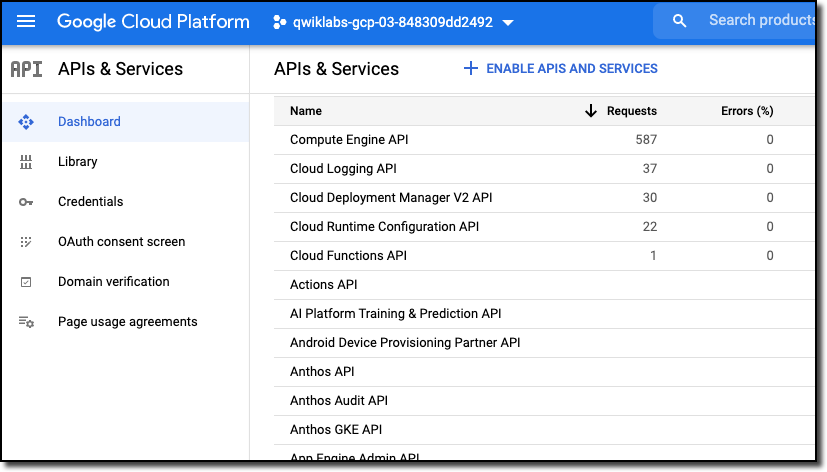

3. Check that the services are activated by going to Navigation > APIs & Services > Dashboard. You should see the enabled services in the list, like this:



   If for some reason you don't see the Anthos services listed, it's likely an issue with updating the list. You can search for one of the APIs in the search bar at the top of the screen and see that it's enabled, or you can take it on faith and continue.

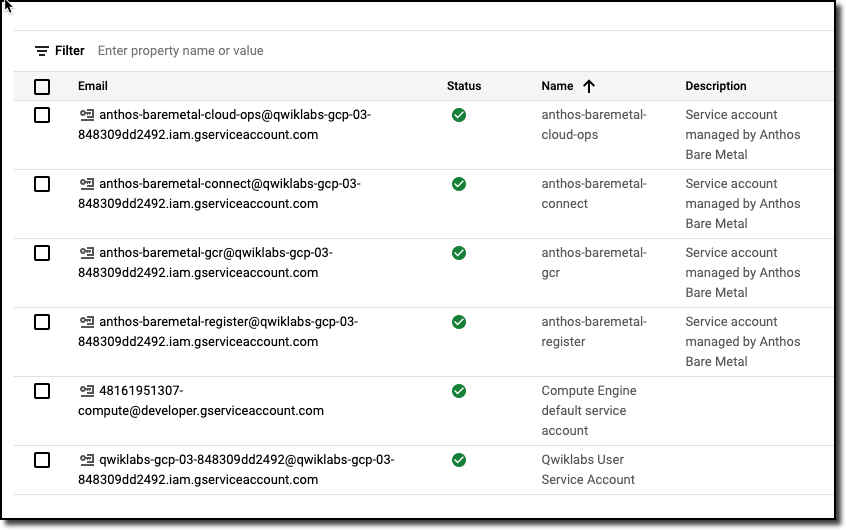

4. Check that the service accounts have been created by going to Navigation > IAM & Admin > Service Accounts. You should see the newly created service accounts:

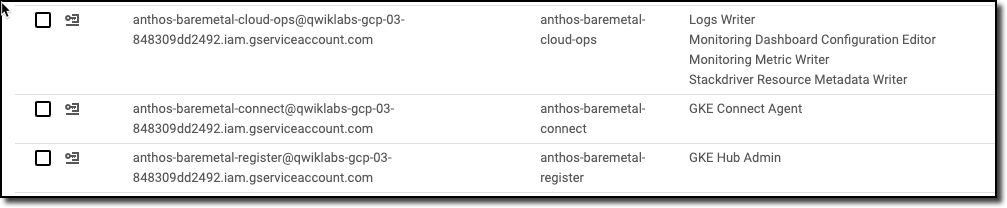

5. Check the roles assigned to your service accounts by going to Navigation > IAM & Admin > IAM. You should see the newly created service accounts and their role assignment:



6. Check the key files for your service accounts have been downloaded:

   ls bmctl-workspace/.sa-keys/

   You should see the newly created service accounts and their role assignment:

   qwiklabs-gcp-03-848309dd2492-anthos-baremetal-cloud-ops.json qwiklabs-gcp-03-848309dd2492-anthos-baremetal-gcr.json qwiklabs-gcp-03-848309dd2492-anthos-baremetal-connect.json qwiklabs-gcp-03-848309dd2492-anthos-baremetal-register.json

Edit the configuration file

While bmctl creates a draft configuration file, you need to make multiple edits to make the file usable. The instructions below walk you through the process.

To avoid mistakes, there are commands that pre-fill the information. If you want to edit the file yourself, you can, just keep in mind that spaces and indents count in YAML files, so be careful that you get positioning correct.

1. View the generated configuration file:

   cat bmctl-workspace/abm-admin-cluster/abm-admin-cluster.yaml

2. Modify the config file by updating the following lines with the values suggested below. You can either edit the file by hand in the vi, or you can run the commands provided to update the file for you.

   Key	Value
   spec:type	admin
   sshPrivateKeyPath	/root/.ssh/id_rsa
   controlPlane:nodePoolSpec:nodes	- address: 10.200.0.3
   loadBalancer:vips:controlPlaneVIP	10.200.0.98

   [automated update commands]

   sed -r -i "s|sshPrivateKeyPath: <path to SSH private key, used for node access>|sshPrivateKeyPath: $(echo $SSH_PRIVATE_KEY)|g" bmctl-workspace/abm-admin-cluster/abm-admin-cluster.yaml sed -r -i "s|type: hybrid|type: admin|g" bmctl-workspace/abm-admin-cluster/abm-admin-cluster.yaml sed -r -i "s|- address: <Machine 1 IP>|- address: $(echo $LB_CONTROLL_PLANE_NODE)|g" bmctl-workspace/abm-admin-cluster/abm-admin-cluster.yaml sed -r -i "s|controlPlaneVIP: 10.0.0.8|controlPlaneVIP: $(echo $LB_CONTROLL_PLANE_VIP)|g" bmctl-workspace/abm-admin-cluster/abm-admin-cluster.yaml

3. Delete the entire NodePool section of the configuration file. Typically, admin clusters don't need worker nodes. You can do this manually or use the following command to automate the modification:

   head -n -11 bmctl-workspace/abm-admin-cluster/abm-admin-cluster.yaml > temp_file && mv temp_file bmctl-workspace/abm-admin-cluster/abm-admin-cluster.yaml

4. If you haven't already, review the modified admin cluster configuration file:

   cat bmctl-workspace/abm-admin-cluster/abm-admin-cluster.yaml

Create the admin cluster

• Create your admin cluster with the following command:

  bmctl create cluster -c abm-admin-cluster

  It will take about 20 minutes for your cluster creation to complete. Wait until the cluster creation is done before moving to the next task.

Task 5. Understand the admin bootstrap process and learn to troubleshoot

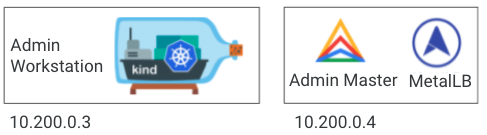

In order to create the admin cluster, Anthos must execute some scripts that connect to the worker nodes and install the necessary software. Instead of running the scripts directly on the admin-workstation, Anthos creates a temporary Kind cluster on the admin-workstation that runs those scripts as Kubernetes Jobs, and makes sure that the software is installed correctly.

You can find the kubeconfig file under bmctl-workspace/.kindkubeconfig, which you can use to access the Kind Kubernetes API to view logs and debug the admin cluster creation process. To simplify the debugging process, and be able to access the information after the creation has completed, the Kind cluster exports the logs onto the admin-workstation under the bmctl-workspace/abm-admin-cluster/log folder.

In the following task, you learn how to access those logs.

1. In Cloud Shell, find the logs exported in the creation process:

   export LATEST_ADMIN_FOLDER=$(ls -d bmctl-workspace/abm-admin-cluster/log/create* -t | head -n 1) cat $LATEST_ADMIN_FOLDER/create-cluster.log

2. Investigate all the generated log files:

   ls $LATEST_ADMIN_FOLDER

In addition to the create-cluster.log file, there is another file in that folder:

3. View the admin master node logs:

   cat $LATEST_ADMIN_FOLDER/10.200.0.3

4. Investigate the preflight checks that bmctl performs before creating the cluster:

   export LATEST_PREFLIGHT_FOLDER=$(ls -d bmctl-workspace/abm-admin-cluster/log/preflight* -t | head -n 1) ls $LATEST_PREFLIGHT_FOLDER


                bmctl check cluster --snapshot --cluster $CLUSTER_NAME --admin-kubeconfig $ADMIN_KUBECONFIG_PATH
            content_copy


5. Check the connectivity tests for the nodes in your network:

   cat $LATEST_PREFLIGHT_FOLDER/node-network

Task 6. Sign in to your admin cluster

1. In Cloud Shell configure kubectl to use the newly generated kubeconfig file that points to your admin cluster:

   export KUBECONFIG=$KUBECONFIG:~/baremetal/bmctl-workspace/abm-admin-cluster/abm-admin-cluster-kubeconfig

2. Rename your kubectl context to something a little easier to remember:

   kubectx admin=.

3. Test to make sure you can access and use your admin cluster:

   kubectl get nodes

   You should see results that look like this:

4. Verify that the admin cluster has been registered with Anthos hub by visiting Navigation > Kubernetes Engine > Clusters. It should look like this:



5. In Cloud Shell, create a Kubernetes Service Account on your cluster and grant it the cluster-admin role:

   kubectl create serviceaccount -n kube-system admin-user kubectl create clusterrolebinding admin-user-binding \ --clusterrole cluster-admin --serviceaccount kube-system:admin-user

6. Create a token that you can use to log in to the cluster from the Console:

   kubectl create token admin-user -n kube-system

7. Select the token in the SSH session (this will copy the token - don't try to copy with CTRL+C).

8. Find the abm-admin-cluster entry in the cluster list showing in the Console and click the three-dots menu at the far right of the row.

9. Select Log in, select Token, then paste the token from your Clipboard into the provided field. Click Login.

Congratulations! You have successfully logged in to your Anthos on bare metal admin cluster!

Task 7. Troubleshooting

1. If you get disconnected from Cloud Shell and want to sign back in to the admin workstation:

   gcloud compute ssh --ssh-flag="-A" root@abm-ws \ --zone us-central1-a \ --tunnel-through-iap

2. If you get disconnected from Cloud Shell and want to connect to the admin cluster:

   # From the admin workstation (root@abm-ws) export KUBECONFIG=$KUBECONFIG:~/baremetal/bmctl-workspace/abm-admin-cluster/abm-admin-cluster-kubeconfig kubectx admin kubectl get nodes

Review

In this lab, you deployed the bare metal infrastructure on GCE and installed the Anthos on bare metal admin cluster. You also learned how to debug the cluster creation and how to run health checks in your cluster. Finally, you logged in through the Google Cloud Console and accessed your on-premises cluster from Google Cloud.

..

End your lab

When you have completed your lab, click End Lab. Google Cloud Skills Boost removes the resources you’ve used and cleans the account for you.

You will be given an opportunity to rate the lab experience. Select the applicable number of stars, type a comment, and then click Submit.

The number of stars indicates the following:

• 1 star = Very dissatisfied
• 2 stars = Dissatisfied
• 3 stars = Neutral
• 4 stars = Satisfied
• 5 stars = Very satisfied

You can close the dialog box if you don't want to provide feedback.

For feedback, suggestions, or corrections, please use the Support tab.

Copyright 2022 Google LLC All rights reserved. Google and the Google logo are trademarks of Google LLC. All other company and product names may be trademarks of the respective companies with which they are associated.
