Overview

Serverless computing on Google Cloud lets you develop and deploy highly scalable applications on a fully managed serverless platform. Services are automatically scaled up and down depending on traffic.

Service integration lets you easily integrate your services in an asynchronous, loosely coupled manner, allowing rapid innovation. Eventarc lets you build event-driven architectures without requiring infrastructure management. Workflows lets you easily build reliable applications by orchestrating services and APIs. Cloud Scheduler is a fully managed cron job service for scheduling your workloads. Cloud Tasks is a fully managed service for creating distributed task queues. Eventarc, Workflows, Cloud Scheduler, and Cloud Tasks help you integrate your services while maintaining observability, reliability, and security.

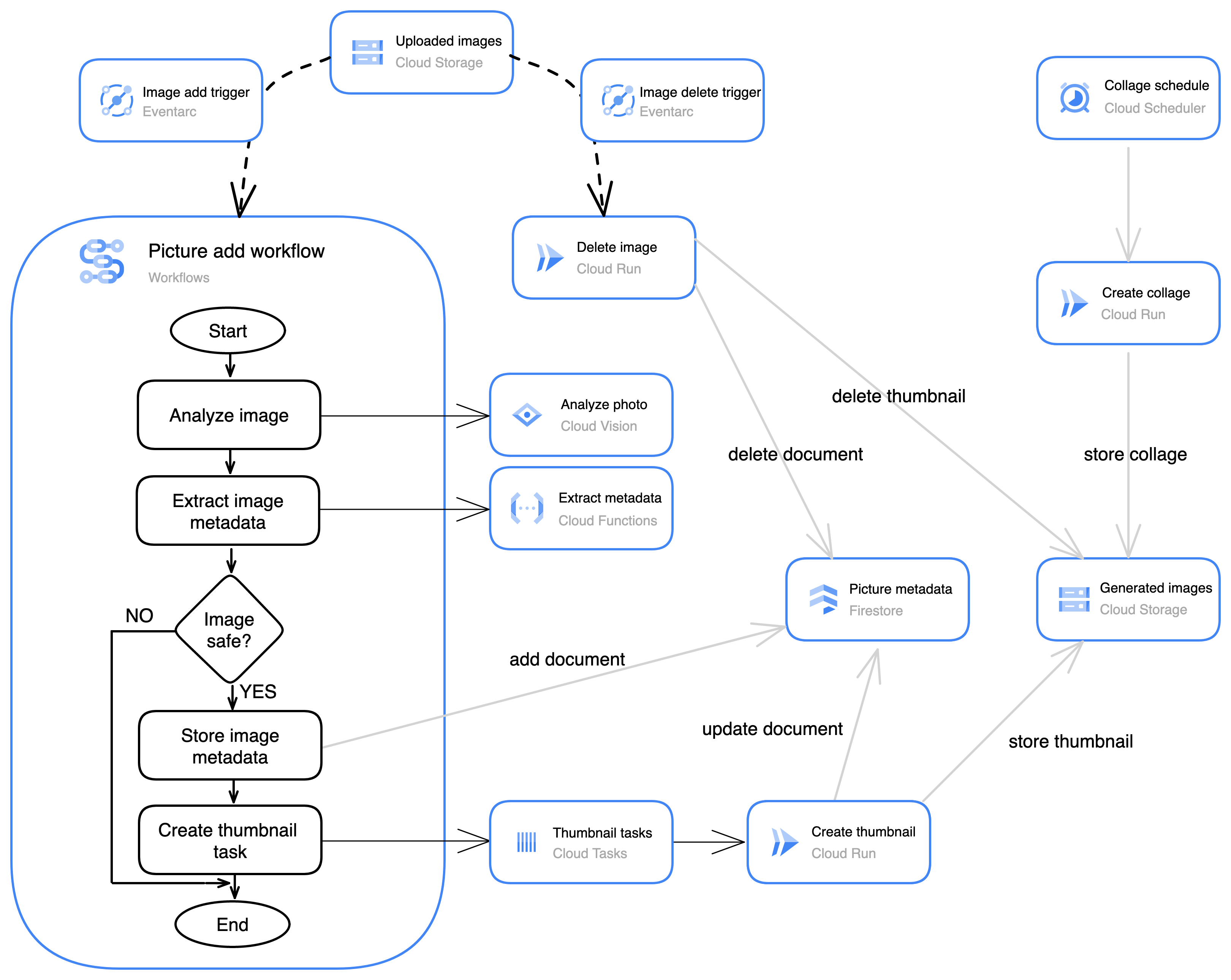

In this lab, you use Workflows to create a workflow that manages the process of creating thumbnails and extracting metadata from incoming images. Eventarc detects when an image is uploaded to a Cloud Storage bucket and starts an execution of your workflow.

The workflow calls the Cloud Vision API to analyze the uploaded photo. Cloud Vision determines whether the image is safe, detects text in the image, and provides labels for the image content. The vision data is extracted using a custom function created in Cloud Run functions. The extracted data is saved in Firestore, Google Cloud's fully managed serverless document database. The workflow also uses Cloud Tasks to queue a task for creating a thumbnail.

Cloud Build is used to build three services that are deployed in Cloud Run, a serverless platform for running containerized services. One of these services creates a thumbnail in response to the task created by the workflow.

The second service creates a photo collage of the most recent images. The collage service runs on a schedule created in Cloud Scheduler.

The third service is triggered by Eventarc when an image is deleted from the Cloud Storage bucket. This service will remove the metadata and thumbnail image for the deleted image.

What you will learn

In this lab, you will learn to:

• Asynchronously trigger services and workflows using Eventarc.
• Orchestrate services and APIs using Workflows.
• Manage a distributed task queue using Cloud Tasks.
• Execute services on a schedule using Cloud Scheduler.

Setup and requirements

For each lab, you get a new Google Cloud project and set of resources for a fixed time at no cost.

1. Click the Start Lab button. If you need to pay for the lab, a pop-up opens for you to select your payment method. On the left is the Lab Details panel with the following:

   • The Open Google Cloud console button
   • Time remaining
   • The temporary credentials that you must use for this lab
   • Other information, if needed, to step through this lab

2. Click Open Google Cloud console (or right-click and select Open Link in Incognito Window if you are running the Chrome browser).

   The lab spins up resources, and then opens another tab that shows the Sign in page.

   Tip: Arrange the tabs in separate windows, side-by-side.

   Note: If you see the Choose an account dialog, click Use Another Account.

3. If necessary, copy the Username below and paste it into the Sign in dialog.

   {{{user_0.username | "Username"}}}

   You can also find the Username in the Lab Details panel.

4. Click Next.

5. Copy the Password below and paste it into the Welcome dialog.

   {{{user_0.password | "Password"}}}

   You can also find the Password in the Lab Details panel.

6. Click Next.

   Important: You must use the credentials the lab provides you. Do not use your Google Cloud account credentials. Note: Using your own Google Cloud account for this lab may incur extra charges.

7. Click through the subsequent pages:

   • Accept the terms and conditions.
   • Do not add recovery options or two-factor authentication (because this is a temporary account).
   • Do not sign up for free trials.

After a few moments, the Google Cloud console opens in this tab.

Note: To view a menu with a list of Google Cloud products and services, click the Navigation menu at the top-left, or type the service or product name in the Search field.

Activate Google Cloud Shell

Google Cloud Shell is a virtual machine that is loaded with development tools. It offers a persistent 5GB home directory and runs on the Google Cloud.

Google Cloud Shell provides command-line access to your Google Cloud resources.

1. In Cloud console, on the top right toolbar, click the Open Cloud Shell button.



2. Click Continue.

It takes a few moments to provision and connect to the environment. When you are connected, you are already authenticated, and the project is set to your PROJECT_ID. For example:

gcloud is the command-line tool for Google Cloud. It comes pre-installed on Cloud Shell and supports tab-completion.

• You can list the active account name with this command:

gcloud auth list

Output:

Credentialed accounts: - @.com (active)

Example output:

Credentialed accounts: - google1623327_student@qwiklabs.net

• You can list the project ID with this command:

gcloud config list project

Output:

[core] project =

Example output:

[core] project = qwiklabs-gcp-44776a13dea667a6 Note: Full documentation of gcloud is available in the gcloud CLI overview guide .

Task 1. Enable APIs and create Cloud Storage buckets

In this task, you enable required APIs. You also create two buckets in Cloud Storage: one for uploading images, and one to store images generated by your application.

Enable APIs

1. To enable the required APIs, run the following command:

   gcloud services enable \ workflows.googleapis.com \ workflowexecutions.googleapis.com \ eventarc.googleapis.com \ tasks.googleapis.com \ cloudscheduler.googleapis.com \ storage.googleapis.com \ vision.googleapis.com \ run.googleapis.com \ cloudfunctions.googleapis.com \ firestore.googleapis.com \ appengine.googleapis.com \ cloudbuild.googleapis.com \ artifactregistry.googleapis.com

   This application uses several Google Cloud services, and you must enable each of the APIs for these services.

   The APIs being enabled:

   • The Workflows API manages the definitions of workflows. A workflow will run the primary process when a new image is uploaded.
   • The Workflows Executions API manages executions of workflows.
   • The Eventarc API manages Eventarc configuration. Eventarc will be used to detect images added to and deleted from a Cloud Storage bucket.
   • The Cloud Tasks API creates and manages distributed tasks. A task will be created by the workflow to cause a thumbnail to be created.
   • The Cloud Scheduler API creates and manages scheduled cron jobs. A scheduled job will be used to create a collage for the latest images.
   • The Cloud Storage API creates and manages Cloud Storage buckets and objects.
   • The Cloud Vision API enables access to Google's machine learning vision features.
   • The Cloud Run API creates and manages Cloud Run services. Cloud Run services are provided to create a thumbnail, delete an image, and create a collage.
   • The Cloud Functions API creates and manages functions. A function is used to extract information from the Cloud Vision response.
   • The Firestore API creates and manages Firestore databases.
   • The App Engine API creates and manages App Engine applications. The App Engine API is required to enable Firestore.
   • The Cloud Build API manages application builds.
   • The Artifact Registry API manages build artifacts and registries.

Create Cloud Storage buckets

1. In Cloud Shell, create a Cloud Storage bucket for uploading images:

   export UPLOAD_BUCKET=uploaded-images-${GOOGLE_CLOUD_PROJECT} gcloud storage buckets create \ --location={{{project_0.default_region|set at lab start}}} gs://${UPLOAD_BUCKET} gcloud storage buckets update \ gs://${UPLOAD_BUCKET} --uniform-bucket-level-access gcloud storage buckets add-iam-policy-binding \ gs://${UPLOAD_BUCKET} \ --member=allUsers --role=roles/storage.objectViewer

   These commands create a public regional bucket with uniform access. Each time an image is copied to the bucket, a workflow will be started to analyze the photo and store the metadata and a thumbnail image.

2. Create a second Cloud Storage bucket for images generated by the image applications:

   export GENERATED_BUCKET=generated-images-${GOOGLE_CLOUD_PROJECT} gcloud storage buckets create \ --location={{{project_0.default_region|set at lab start}}} gs://${GENERATED_BUCKET} gcloud storage buckets update \ gs://${GENERATED_BUCKET} --uniform-bucket-level-access gcloud storage buckets add-iam-policy-binding \ gs://${GENERATED_BUCKET} \ --member=allUsers --role=roles/storage.objectViewer

3. In the Google Cloud console, in the Navigation menu (), navigate to Cloud Storage > Buckets.

   The two buckets that you created are shown.

   Click Check my progress to verify the objective. Create Cloud Storage buckets

Task 2. Create the Firestore database

In this task, you create the Firestore database that will store image metadata.

Create the database

1. To create the Firestore database, in Cloud Shell, run the following command:

   export FIRESTORE_LOCATION={{{project_0.default_region|set at lab start}}} gcloud firestore databases create \ --location=${FIRESTORE_LOCATION} \ --type=firestore-native

   A Firestore collection named images will be used to store image metadata. The collage service will search the database to find the most recent images with thumbnails to create the collage.

   After the database is created, you must create an index to support this search.

Create the Firestore composite index

A Firestore composite index is used when you need a single query to reference multiple fields.

1. To create the composite index, run the following command:

   gcloud firestore indexes composite create \ --collection-group=images \ --field-config field-path=thumbnail,order=descending \ --field-config field-path=created,order=descending \ --async

   This index will let the collage service find the most recent images that have thumbnails.

   The --async parameter indicates that you do not want to wait for the operation to complete.

2. On the Google Cloud console title bar, in the Search field, type Firestore, click Search, and then click Firestore.

3. Click on your database id (default) and from the left pane click Indexes.

   You should see that the index on the images collection is being created.

   Note: Creating the search index may take several minutes. You can continue with the lab before the index creation is completed.

   Click Check my progress to verify the objective. Create the Firestore database and composite index

Task 3. Create the thumbnail task queue

In this task, you create a Cloud Tasks queue for requesting thumbnail creation by the create-thumbnail service.

1. To create the task queue, in Cloud Shell, enter the following command:

   export QUEUE_REGION={{{project_0.default_region|set at lab start}}} gcloud tasks queues create thumbnail-task-queue \ --location=${QUEUE_REGION}

2. On the Google Cloud console title bar, in the Search field, type Cloud Tasks, click Search, and then click Cloud Tasks.

   The queue named thumbnail-task-queue has been created.

   Click Check my progress to verify the objective. Create the Cloud Tasks queue

Task 4. Deploy the Cloud Run services

In this task, you build and deploy the Cloud Run services that will be used by the image application.

Clone the source code repository

1. In Cloud Shell, clone the git repository:

   git clone --depth=1 https://github.com/GoogleCloudPlatform/training-data-analyst

2. Create a soft link shortcut to the root directory for this lab:

   ln -s ~/training-data-analyst/courses/orchestration-and-choreography/lab1 ~/code

Create a repository in Artifact Registry

Artifact Registry is the next generation of Container Registry. You can store build artifacts inside an Artifact Registry repository.

1. To create an Artifact Registry repository for Docker images, in Cloud Shell, run the following command:

   export REPO_NAME=image-app-repo export REPO_REGION={{{project_0.default_region|set at lab start}}} gcloud artifacts repositories create ${REPO_NAME} \ --location=${REPO_REGION} --repository-format=docker

Build and deploy the create-thumbnail service

The thumbnail service creates a thumbnail for an uploaded image and stores it in the generated-images bucket.

1. In Cloud Shell, click Open Editor.

2. In Cloud Shell Editor, Navigate to ~/code/cloud-run/create-thumbnail and examine the files for the create-thumbnail service.

   The directory contains three files:

   • package.json holds metadata relevant to building your Node.js application. It defines the command that starts the application (node index.js) and specifies the versions of packages used by the code.
   • Dockerfile specifies the starting image (node:16-slim) and contains the list of commands that are run to build the container image that will host our service. The installation includes installing Imagemagick, which will be used to create thumbnail images from uploaded images.
   • index.js contains the code for the service.

3. Click Open Terminal.

4. To build the create-thumbnail service Docker image using Cloud Build, in Cloud Shell, run the following commands:

   export REPO_NAME=image-app-repo export REPO_REGION={{{project_0.default_region|set at lab start}}} export THUMBNAIL_SERVICE_NAME=create-thumbnail cd ~/code/cloud-run/create-thumbnail gcloud builds submit \ . \ --tag ${REPO_REGION}-docker.pkg.dev/${GOOGLE_CLOUD_PROJECT}/${REPO_NAME}/${THUMBNAIL_SERVICE_NAME}

   The service is built and stored in the Artifact Registry repository.

5. To deploy the service using Cloud Run, in Cloud Shell, run the following commands:

   export REPO_NAME=image-app-repo export REPO_REGION={{{project_0.default_region|set at lab start}}} export THUMBNAIL_SERVICE_REGION={{{project_0.default_region|set at lab start}}} export THUMBNAIL_SERVICE_NAME=create-thumbnail export GENERATED_IMAGES_BUCKET=generated-images-${GOOGLE_CLOUD_PROJECT} cd ~/code/cloud-run/create-thumbnail gcloud config set run/region ${THUMBNAIL_SERVICE_REGION} gcloud config set run/platform managed gcloud run deploy ${THUMBNAIL_SERVICE_NAME} \ --image ${REPO_REGION}-docker.pkg.dev/${GOOGLE_CLOUD_PROJECT}/${REPO_NAME}/${THUMBNAIL_SERVICE_NAME} \ --no-allow-unauthenticated \ --memory=1Gi \ --max-instances=1 \ --update-env-vars GENERATED_IMAGES_BUCKET=${GENERATED_IMAGES_BUCKET}

   The generated-images bucket name is passed to the application using an environment variable.

Build and deploy the collage service

The collage service combines the most recently uploaded images into a collage and stores the collage in the generated images bucket.

1. In Cloud Shell, click Open Editor.

2. In Cloud Shell Editor, navigate to ~/code/cloud-run/create-collage and examine the files for the create-collage service.

   This directory contains three files: package.json, index.js, and Dockerfile.

3. Click Open Terminal.

4. To build and deploy the create-collage service Docker image, in Cloud Shell, run the following commands:

   export REPO_NAME=image-app-repo export REPO_REGION={{{project_0.default_region|set at lab start}}} export COLLAGE_SERVICE_REGION={{{project_0.default_region|set at lab start}}} export COLLAGE_SERVICE_NAME=create-collage export GENERATED_IMAGES_BUCKET=generated-images-${GOOGLE_CLOUD_PROJECT} cd ~/code/cloud-run/create-collage gcloud builds submit \ . \ --tag ${REPO_REGION}-docker.pkg.dev/${GOOGLE_CLOUD_PROJECT}/${REPO_NAME}/${COLLAGE_SERVICE_NAME} gcloud config set run/region ${COLLAGE_SERVICE_REGION} gcloud config set run/platform managed gcloud run deploy ${COLLAGE_SERVICE_NAME} \ --image ${REPO_REGION}-docker.pkg.dev/${GOOGLE_CLOUD_PROJECT}/${REPO_NAME}/${COLLAGE_SERVICE_NAME} \ --no-allow-unauthenticated \ --memory=1Gi \ --max-instances=1 \ --update-env-vars GENERATED_IMAGES_BUCKET=${GENERATED_IMAGES_BUCKET}

Build and deploy the delete image service

The delete image service removes the thumbnail image from the generated images bucket and deletes the image metadata from the database.

1. In Cloud Shell, click Open Editor.

2. In Cloud Shell Editor, navigate to ~/code/cloud-run/delete-image and examine the files for the delete-image service.

   This directory only contains two files: package.json and index.js. There's no Dockerfile.

   Instead of building and publishing the container manually, this lab relies on Google Cloud Buildpacks to automatically build the container.

   Also note that the service parses the request as a CloudEvent. Eventarc sends events using the standard CloudEvent format.

3. Click Open Terminal.

4. To build and deploy the delete-image service to Cloud Run using Google Cloud Buildpacks, in Cloud Shell, run the following commands:

   export DELETE_SERVICE_REGION={{{project_0.default_region|set at lab start}}} export DELETE_SERVICE_NAME=delete-image export GENERATED_IMAGES_BUCKET=generated-images-${GOOGLE_CLOUD_PROJECT} cd ~/code/cloud-run/delete-image npm install gcloud config set run/region ${DELETE_SERVICE_REGION} gcloud config set run/platform managed gcloud run deploy ${DELETE_SERVICE_NAME} \ --source . \ --no-allow-unauthenticated \ --max-instances=1 \ --update-env-vars GENERATED_IMAGES_BUCKET=${GENERATED_IMAGES_BUCKET}

   gcloud run deploy warns that an Artifact Registry Docker repository must be created for images created by Google Cloud Buildpacks.

5. When asked if you want to continue, enter Y.

Examine the artifact repositories and Cloud Run services

1. On the Google Cloud console title bar, in the Search field, type Artifact Registry, click Search, and then click Artifact Registry.

   The repository you created (image-app-repo) and the repository created by Google Cloud Buildpacks (cloud-run-source-deploy) are in the Artifact Registry.

2. Click image-app-repo.

   Stored in image-app-repo are the Docker images you just built for the create-collage and create-thumbnail services.

3. Return to Artifact Registry > Repositories, and then click cloud-run-source-deploy.

   The repository contains the delete-image Docker image that was automatically created by Google Cloud Buildpacks.

4. In the Google Cloud console, in the Navigation menu (), navigate to Cloud Run > Services.

   All three services have been deployed.

   Click Check my progress to verify the objective. Create the repository and deploy the Cloud Run services

Task 5. Create a function to parse the Cloud Vision response

In this task, you create a Cloud Run function to parse the image data returned by the Cloud Vision API.

1. In Cloud Shell, click Open Editor.

2. In Cloud Editor, navigate to ~/code/cloud-functions/extract-image-metadata and examine the files for the extract-image-metadata function.

   The Node.js service contains index.js and package.json files. Cloud Run functions automatically uses Buildpacks to create the container, so no Dockerfile is required.

3. Click Open Terminal.

4. To deploy the function, in Cloud Shell, run the following command:

   export EXTRACT_FUNCTION_REGION={{{project_0.default_region|set at lab start}}} export EXTRACT_FUNCTION_NAME=extract-image-metadata cd ~/code/cloud-functions/${EXTRACT_FUNCTION_NAME} gcloud config set functions/region ${EXTRACT_FUNCTION_REGION} gcloud functions deploy ${EXTRACT_FUNCTION_NAME} \ --gen2 \ --source . \ --runtime=nodejs20 \ --entry-point=extract_image_metadata \ --trigger-http \ --no-allow-unauthenticated Note: If the deploy indicates that repository metadata could not be retrieved, try a few more times until the function deployment works.

5. On the Google Cloud console title bar, in the Search field, type Cloud Run functions, click Search, and then click Cloud Run functions.

   The extract-image-metadata function has been deployed.

   Click Check my progress to verify the objective. Create the function to parse the Cloud Vision response

Task 6. Create the workflow

In this task, you create a workflow to orchestrate your service and API calls.

1. In Cloud Shell, click Open Editor.

2. In Cloud Shell Editor, navigate to ~/code/workflows and examine the image-add-workflow.yaml YAML file.

   The workflow specifies a series of steps to be performed when the workflow is initiated. Here are the non-logging steps:

   • init assigns variables that will be used in the workflow. bucket and filename are populated with values passed by Eventarc when the workflow is called. projectId gets the project ID value from an environment variable that is automatically populated for a workflow.
   • imageAnalysisCall calls the Cloud Vision API to analyze the uploaded image.
   • extractImageMetadata calls a Cloud Run function to extract the important information out of the Cloud Vision API call response.
   • checkSafety exits the workflow when the Cloud Vision API determines that the image is unsafe.
   • storeMetadata calls the Firestore API to store the image metadata.
   • getThumbnailService calls a Cloud Run connector to find the URL of the create-thumbnail Cloud Run service.
   • queueThumbnail uses a Cloud Tasks connector to create a task to asynchronously call the thumbnail service.
   • completed ends the workflow, returning the identifier of the workflow execution.

3. Click Open Terminal.

4. To create a service account for the workflow identity and add some basic permissions, run the following commands:

   export WORKFLOWS_SA=workflows-sa gcloud iam service-accounts create ${WORKFLOWS_SA} gcloud projects add-iam-policy-binding ${GOOGLE_CLOUD_PROJECT} \ --member="serviceAccount:${WORKFLOWS_SA}@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com" \ --role="roles/datastore.user" gcloud projects add-iam-policy-binding ${GOOGLE_CLOUD_PROJECT} \ --member="serviceAccount:${WORKFLOWS_SA}@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com" \ --role="roles/cloudtasks.enqueuer" gcloud projects add-iam-policy-binding ${GOOGLE_CLOUD_PROJECT} \ --member="serviceAccount:${WORKFLOWS_SA}@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com" \ --role="roles/logging.logWriter" gcloud projects add-iam-policy-binding ${GOOGLE_CLOUD_PROJECT} \ --member="serviceAccount:${WORKFLOWS_SA}@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com" \ --role="roles/iam.serviceAccountUser"

   The roles permit the following functionality:

   • roles/datastore.user lets the workflow write documents to Firestore.
   • roles/cloudtasks.enqueuer lets the workflow create a Cloud Task.
   • roles/logging.logWriter lets the workflow log variables to Cloud Logging.
   • roles/iam.serviceAccountUser lets the service account impersonate another service account, so Cloud Tasks can send the request using the workflow service account identity.

5. To add permissions to call the function and Cloud Run service, run the following commands:

   export WORKFLOWS_SA=workflows-sa export THUMBNAIL_SERVICE_NAME=create-thumbnail export THUMBNAIL_SERVICE_REGION={{{project_0.default_region|set at lab start}}} export EXTRACT_FUNCTION_NAME=extract-image-metadata gcloud functions add-iam-policy-binding ${EXTRACT_FUNCTION_NAME} \ --member="serviceAccount:${WORKFLOWS_SA}@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com" \ --role="roles/cloudfunctions.invoker" gcloud run services add-iam-policy-binding ${THUMBNAIL_SERVICE_NAME} \ --region=${THUMBNAIL_SERVICE_REGION} \ --member="serviceAccount:${WORKFLOWS_SA}@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com" \ --role="roles/run.viewer" gcloud run services add-iam-policy-binding ${THUMBNAIL_SERVICE_NAME} \ --region=${THUMBNAIL_SERVICE_REGION} \ --member="serviceAccount:${WORKFLOWS_SA}@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com" \ --role="roles/run.invoker"

   If asked, Would you like to run this command and additionally grant permission to invoke function [extract-image-metadata] (Y/n)?, enter Y.

   These additional roles permit the following functionality:

   • roles/cloudfunctions.invoker lets the workflow call the function that extracts the metadata from the Cloud Vision response.
   • roles/run.viewer lets the workflow query the thumbnail service details.
   • roles/run.invoker lets the workflow service account call the thumbnail service. The service account will be used by Cloud Tasks when calling the service.

6. To deploy the workflow, run the following command:

   export WORKFLOW_NAME=image-add-workflow export WORKFLOW_REGION={{{project_0.default_region|set at lab start}}} export WORKFLOWS_SA=workflows-sa cd ~/code/workflows gcloud workflows deploy ${WORKFLOW_NAME} \ --source=${WORKFLOW_NAME}.yaml \ --location=${WORKFLOW_REGION} \ --service-account="${WORKFLOWS_SA}@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com" Note: If the command fails with Workflows service agent does not exist. Re-deploy the workflow.

7. On the Google Cloud console title bar, in the Search field, type Workflows, click Search, and then click Workflows.

8. Click the Pin icon next to Workflows.

9. Click image-add-workflow, and then click the Source tab.

   The left pane displays the code for the workflow, and the right pane displays a flow visualization for the steps of the workflow.

   Click Check my progress to verify the objective. Create the workflow

Task 7. Create an Eventarc trigger to start the workflow

In this task, you will create an Eventarc trigger that runs the workflow when a file is added to the uploaded-images bucket.

1. To create a service account for the workflow trigger, and grant it the necessary permissions, in Cloud Shell, run the following command:

   export WORKFLOW_TRIGGER_SA=workflow-trigger-sa gcloud iam service-accounts create ${WORKFLOW_TRIGGER_SA} gcloud projects add-iam-policy-binding ${GOOGLE_CLOUD_PROJECT} \ --member="serviceAccount:${WORKFLOW_TRIGGER_SA}@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com" \ --role="roles/workflows.invoker" gcloud projects add-iam-policy-binding ${GOOGLE_CLOUD_PROJECT} \ --member "serviceAccount:${WORKFLOW_TRIGGER_SA}@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com" \ --role="roles/eventarc.eventReceiver"

   These commands create a service account named workflow-trigger-sa, and add roles to receive events and invoke workflows.

2. To grant the Cloud Storage service account permission to create events, run the following command:

   export CLOUD_STORAGE_SA="$(gcloud storage service-agent)" gcloud projects add-iam-policy-binding ${GOOGLE_CLOUD_PROJECT} \ --member="serviceAccount:${CLOUD_STORAGE_SA}" \ --role="roles/pubsub.publisher"

   These commands retrieve the Cloud Storage service account and add the permission to publish Pub/Sub events.

3. To create the trigger, run the following command:

   export WORKFLOW_TRIGGER_REGION={{{project_0.default_region|set at lab start}}} export WORKFLOW_NAME=image-add-workflow export WORKFLOW_REGION={{{project_0.default_region|set at lab start}}} export UPLOAD_BUCKET=uploaded-images-${GOOGLE_CLOUD_PROJECT} export WORKFLOW_TRIGGER_SA=workflow-trigger-sa gcloud eventarc triggers create image-add-trigger \ --location=${WORKFLOW_TRIGGER_REGION} \ --destination-workflow=${WORKFLOW_NAME} \ --destination-workflow-location=${WORKFLOW_REGION} \ --event-filters="type=google.cloud.storage.object.v1.finalized" \ --event-filters="bucket=${UPLOAD_BUCKET}" \ --service-account="${WORKFLOW_TRIGGER_SA}@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com"

   This trigger will call the workflow whenever a file is written to the uploaded-images bucket.

   Note: If you receive a permissions propagation error when creating the trigger, a permission may not have been propagated to Eventarc yet. Retrying the trigger creation once or twice should work.

   Click Check my progress to verify the objective. Create the Eventarc trigger to start the workflow

Task 8. Test the add image workflow

In this task, you test the steps that occur when an image is added to the uploaded-images bucket.

1. To upload an image to the uploaded-images bucket, run the following commands:

   export UPLOAD_BUCKET=uploaded-images-${GOOGLE_CLOUD_PROJECT} export IMAGE_NAME=neon.jpg gcloud storage cp ~/code/images/${IMAGE_NAME} gs://${UPLOAD_BUCKET}

   When the upload finishes, Eventarc detects the upload and starts the workflow.

2. In the Google Cloud console, in the Navigation menu (), navigate to Workflows > Workflows.

3. Click image-add-workflow, and then click the Executions tab.

   You should soon see a workflow execution.

   Note: It may take a minute or two for the execution to start.

4. Click the execution ID to open the Execution Details page.

   This page shows the details of the workflow execution.

   The Input pane shows the contents of the Cloud Storage event that was sent by the Eventarc trigger.

   The Output pane shows the values that were returned at the end of the workflow.

   The Logs pane shows log entries created by the workflow.

5. On the Google Cloud console title bar, in the Search field, type Cloud Run functions, click Search, and then click Cloud Run functions.

6. Click extract-image-metadata.

   This dashboard shows details about the function used to extract the information from the Cloud Vision response.

7. Click the Logs tab.

   Logged data from the function execution is found here. The labels and text for the image were logged.

8. On the Google Cloud console title bar, in the Search field, type Firestore, click Search, and then click Firestore.

9. Click (default).

   The images collection should show a document named neon.jpg that was written by the workflow. The labels attached to the image and the text found within the image are shown.

10. In the Google Cloud console, in the Navigation menu (), navigate to Cloud Run > Services, and then click create-thumbnail.

    This dashboard shows information about the create-thumbnail service.

11. Click the Logs tab.

    Data logged from the service execution is found here.

12. In Cloud Shell, run the following commands:

    export UPLOAD_BUCKET=uploaded-images-${GOOGLE_CLOUD_PROJECT} export GENERATED_BUCKET=generated-images-${GOOGLE_CLOUD_PROJECT} export IMAGE_NAME=neon.jpg echo "uploaded image: https://storage.googleapis.com/${UPLOAD_BUCKET}/${IMAGE_NAME}" echo "generated image: https://storage.googleapis.com/${GENERATED_BUCKET}/${IMAGE_NAME}" echo "Listing of generated-images bucket:" gcloud storage ls gs://${GENERATED_BUCKET}

    The generated-images bucket should have a thumbnail created by the create-thumbnail service. You can click the links within Cloud Shell to open a new tab and see the uploaded and generated images.

    Note: It may take a short time before the generated image shows up in the bucket and listing.

    Click Check my progress to verify the objective. Test the add image workflow

Task 9. Add a scheduled job to create a collage

In this task, you will create a Cloud Scheduler job to periodically create a collage of the most recently uploaded photos.

Upload images

1. To upload more images to the uploaded-images bucket, run the following commands:

   export UPLOAD_BUCKET=uploaded-images-${GOOGLE_CLOUD_PROJECT} gcloud storage cp ~/code/images/alley.jpg \ gs://${UPLOAD_BUCKET} gcloud storage cp ~/code/images/desktop.jpg \ gs://${UPLOAD_BUCKET} gcloud storage cp ~/code/images/rainbow.jpg \ gs://${UPLOAD_BUCKET} gcloud storage cp ~/code/images/vegas.jpg \ gs://${UPLOAD_BUCKET}

   The workflow will run for each image, resulting in a thumbnail for each image.

2. To create a service account for calling the create-collage service, run the following commands:

   export COLLAGE_SCHED_SA=collage-schedule-sa export COLLAGE_SERVICE=create-collage export COLLAGE_SERVICE_REGION={{{project_0.default_region|set at lab start}}} gcloud iam service-accounts create ${COLLAGE_SCHED_SA} gcloud run services add-iam-policy-binding ${COLLAGE_SERVICE} \ --region=${COLLAGE_SERVICE_REGION} \ --member="serviceAccount:${COLLAGE_SCHED_SA}@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com" \ --role="roles/run.invoker"

3. To retrieve the service URL for the create-collage service, in Cloud Shell, run the following command:

   export SERVICE_REGION={{{project_0.default_region|set at lab start}}} export SERVICE_NAME=create-collage gcloud run services describe ${SERVICE_NAME} \ --platform managed \ --region ${SERVICE_REGION} \ --format 'value(status.url)'

   Copy the URL into the clipboard. You will need this URL when creating the scheduled job.

4. On the Google Cloud console title bar, in the Search field, type Cloud Scheduler, click Search, and then click Cloud Scheduler.

5. Click +Create Job.

6. Specify the following schedule settings:

   Property	Value
   Name	collage-schedule
   Region	select
   Frequency	* * * * *
   Timezone	search for UTC and then select Coordinated Universal Time (UTC)

   The frequency specifies the schedule in unix-cron format. * * * * * specifies that the job will run once a minute.

   The frequency of once a minute is chosen for ease of testing.

7. Click Continue, and then select the Target type of HTTP.

8. Specify the following execution settings:

   Property	Value
   URL	paste the create-collage service URL
   HTTP method	select POST
   Auth header	select Add OIDC token
   Service account	select collage-schedule-sa
   Audience	paste the create-collage service URL

9. Click Continue, and then click Create.

   The collage-schedule job is displayed on the Cloud Scheduler Jobs page.

   The job should run within a minute.

10. Click Refresh until the collage-schedule job shows a check mark, indicating success.

Click Check my progress to verify the objective. Add a scheduled job to create the collage

1. In Cloud Shell, run the following commands:

   export GENERATED_BUCKET=generated-images-${GOOGLE_CLOUD_PROJECT} export IMAGE_NAME=collage.png echo "generated collage: https://storage.googleapis.com/${GENERATED_BUCKET}/${IMAGE_NAME}" echo "Listing of generated-images bucket:" gcloud storage ls gs://${GENERATED_BUCKET}

   The generated-images bucket should now include the collage.png file. You can click the "generated collage" link within Cloud Shell to open a new tab and see the collage.

   A file copied into Cloud Storage is available immediately after the file upload process completes, so the link should work immediately after the scheduled job completes. When you list the bucket contents, the file may not show up until a short time later.

Task 10. Trigger a service to delete image files and metadata

In this task, you will create an Eventarc trigger to remove the associated thumbnail image and remove the Firestore document when an image is deleted from the uploaded-images bucket.

Create service account and manage roles

1. To create a service account for the delete-image trigger, and grant it the necessary permissions, in Cloud Shell, run the following command:

   export DELETE_TRIGGER_SA=delete-image-trigger-sa export DELETE_SERVICE_REGION={{{project_0.default_region|set at lab start}}} export DELETE_SERVICE=delete-image gcloud iam service-accounts create ${DELETE_TRIGGER_SA} gcloud projects add-iam-policy-binding ${GOOGLE_CLOUD_PROJECT} \ --member "serviceAccount:${DELETE_TRIGGER_SA}@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com" \ --role="roles/eventarc.eventReceiver" gcloud run services add-iam-policy-binding ${DELETE_SERVICE} \ --region=${DELETE_SERVICE_REGION} \ --member="serviceAccount:${DELETE_TRIGGER_SA}@${GOOGLE_CLOUD_PROJECT}.iam.gserviceaccount.com" \ --role="roles/run.invoker"

   These commands create a service account named delete-image-trigger-sa, and add permissions to receive events and invoke the delete-image service.

2. In the Google Cloud console, in the Navigation menu (), navigate to Cloud Run, and then click delete-image.

3. On the Service details page, click the the Triggers tab.

4. Click + Add Trigger, and then select Cloud Storage trigger.

5. Specify the following trigger settings:

   Property	Value
   Trigger name	image-delete-trigger
   Event type	select google.cloud.storage.object.v1.deleted
   Bucket	click Browse, then select the uploaded-images bucket, and then click Select
   Service account	select the delete-image-trigger-sa service account
   Service URL path	/

6. If you're told that Pub/Sub must be granted a role, click Grant.

7. Click Save Trigger.

   This trigger will call the delete-image service whenever a file is deleted from the uploaded-images bucket.

   Note: If you get an error message indicating that a region violates a constraint on the trigger resource, it is possible that you have selected the incorrect Cloud Storage bucket. Try the creation process again, and confirm the selection of the uploaded-images bucket.

Click Check my progress to verify the objective. Trigger a service to delete image files and metadata

Test image deletion

1. To list an image in the Cloud Storage buckets and the corresponding document in Firestore, run the following commands:

   export UPLOAD_BUCKET=uploaded-images-${GOOGLE_CLOUD_PROJECT} export GENERATED_BUCKET=generated-images-${GOOGLE_CLOUD_PROJECT} export IMAGE_NAME=vegas.jpg echo "Listing of image in uploaded-images bucket:" gcloud storage ls gs://${UPLOAD_BUCKET}/${IMAGE_NAME} echo "Listing of image in generated-images bucket:" gcloud storage ls gs://${GENERATED_BUCKET}/${IMAGE_NAME} echo "Image document in Firestore:" curl -q -s -H "Authorization: Bearer $(gcloud auth print-access-token)" \ -X GET "https://firestore.googleapis.com/v1/projects/${GOOGLE_CLOUD_PROJECT}/databases/(default)/documents/images/${IMAGE_NAME}"

   These commands display the Cloud Storage and Firestore details for a single image. Next, we remove that image.

2. To delete an image in the uploaded-images bucket, run the following command:

   export UPLOAD_BUCKET=uploaded-images-${GOOGLE_CLOUD_PROJECT} export IMAGE_NAME=vegas.jpg gcloud storage rm gs://${UPLOAD_BUCKET}/${IMAGE_NAME}

   Eventarc will detect the removed file and call the image-delete service, which removes the thumbnail and Firestore document.

3. To check whether the thumbnail and Firestore document have been removed, run the same commands you ran earlier:

   export UPLOAD_BUCKET=uploaded-images-${GOOGLE_CLOUD_PROJECT} export GENERATED_BUCKET=generated-images-${GOOGLE_CLOUD_PROJECT} export IMAGE_NAME=vegas.jpg echo "Listing of image in uploaded-images bucket:" gcloud storage ls gs://${UPLOAD_BUCKET}/${IMAGE_NAME} echo "Listing of image in generated-images bucket:" gcloud storage ls gs://${GENERATED_BUCKET}/${IMAGE_NAME} echo "Image document in Firestore:" curl -q -s -H "Authorization: Bearer $(gcloud auth print-access-token)" -X GET "https://firestore.googleapis.com/v1/projects/${GOOGLE_CLOUD_PROJECT}/databases/(default)/documents/images/${IMAGE_NAME}"

   The items have been removed.

4. In the Google Cloud console, in the Navigation menu (), navigate to Cloud Run > Services, and then click delete-image.

5. Click Logs.

   The logs for the delete-image service show that the thumbnail was deleted from the generated-images bucket, and the Firestore document was deleted from the database.

Congratulations!

You successfully used Eventarc to trigger services and workflows. You orchestrated services and APIs using Workflows. You created and used a distributed task queue using Cloud Tasks. Finally, you created a job to run a service using Cloud Scheduler.

Next Steps/Learn More

• Learn how you can use Cloud Run to build your own applications in our Application Development with Cloud Run course.
• Find out more about how Google Cloud enables serverless architectures with videos from the Serverless Expeditions team!

End your lab

When you have completed your lab, click End Lab. Google Cloud Skills Boost removes the resources you’ve used and cleans the account for you.

You will be given an opportunity to rate the lab experience. Select the applicable number of stars, type a comment, and then click Submit.

The number of stars indicates the following:

• 1 star = Very dissatisfied
• 2 stars = Dissatisfied
• 3 stars = Neutral
• 4 stars = Satisfied
• 5 stars = Very satisfied

You can close the dialog box if you don't want to provide feedback.

For feedback, suggestions, or corrections, please use the Support tab.

Copyright 2024 Google LLC All rights reserved. Google and the Google logo are trademarks of Google LLC. All other company and product names may be trademarks of the respective companies with which they are associated.
