Overview

Workflows are a common theme in data analytics - they involve ingesting, transforming, and analyzing data to figure out the meaningful information within. In Google Cloud, the tool for hosting workflows is Cloud Composer which is a hosted version of the popular open source workflow tool Apache Airflow.

In this lab, you use the Google Cloud console to set up a Cloud Composer environment. You then use Cloud Composer to go through a simple workflow that verifies the existence of a data file, creates a Cloud Dataproc cluster, runs an Apache Hadoop wordcount job on the Cloud Dataproc cluster, and deletes the Cloud Dataproc cluster afterwards.

What you'll do

• Use the Google Cloud console to create the Cloud Composer environment

• View and run the DAG (Directed Acyclic Graph) in the Airflow web interface

• View the results of the wordcount job in storage

Setup and requirements

Lab setup

For each lab, you get a new Google Cloud project and set of resources for a fixed time at no cost.

1. Sign in to Qwiklabs using an incognito window.

2. Note the lab's access time (for example, 1:15:00), and make sure you can finish within that time.
   There is no pause feature. You can restart if needed, but you have to start at the beginning.

3. When ready, click Start lab.

4. Note your lab credentials (Username and Password). You will use them to sign in to the Google Cloud Console.

5. Click Open Google Console.

6. Click Use another account and copy/paste credentials for this lab into the prompts.
   If you use other credentials, you'll receive errors or incur charges.

7. Accept the terms and skip the recovery resource page.

Activate Google Cloud Shell

Google Cloud Shell is a virtual machine that is loaded with development tools. It offers a persistent 5GB home directory and runs on the Google Cloud.

Google Cloud Shell provides command-line access to your Google Cloud resources.

1. In Cloud console, on the top right toolbar, click the Open Cloud Shell button.



2. Click Continue.

It takes a few moments to provision and connect to the environment. When you are connected, you are already authenticated, and the project is set to your PROJECT_ID. For example:

gcloud is the command-line tool for Google Cloud. It comes pre-installed on Cloud Shell and supports tab-completion.

• You can list the active account name with this command:

gcloud auth list

Output:

Credentialed accounts: - @.com (active)

Example output:

Credentialed accounts: - google1623327_student@qwiklabs.net

• You can list the project ID with this command:

gcloud config list project

Output:

[core] project =

Example output:

[core] project = qwiklabs-gcp-44776a13dea667a6 Note: Full documentation of gcloud is available in the gcloud CLI overview guide .

Check project permissions

Before you begin your work on Google Cloud, you need to ensure that your project has the correct permissions within Identity and Access Management (IAM).

1. In the Google Cloud console, on the Navigation menu (), select IAM & Admin > IAM.

2. Confirm that the default compute Service Account {project-number}-compute@developer.gserviceaccount.com is present and has the editor role assigned. The account prefix is the project number, which you can find on Navigation menu > Cloud Overview > Dashboard.

Note: If the account is not present in IAM or does not have the editor role, follow the steps below to assign the required role.

1. In the Google Cloud console, on the Navigation menu, click Cloud Overview > Dashboard.
2. Copy the project number (e.g. 729328892908).
3. On the Navigation menu, select IAM & Admin > IAM.
4. At the top of the roles table, below View by Principals, click Grant Access.
5. For New principals, type:

{project-number}-compute@developer.gserviceaccount.com

6. Replace {project-number} with your project number.
7. For Role, select Project (or Basic) > Editor.
8. Click Save.

Task 1. Environment Tasks

1. On the Google Cloud Console title bar, click Activate Cloud Shell. If prompted, click Continue.

2. Run the following commands to assign the Composer Worker role to the Compute Developer Service Acocunt.

export PROJECT_ID=$(gcloud config get-value project) export PROJECT_NUMBER=$(gcloud projects describe $PROJECT_ID --format="value(projectNumber)") gcloud projects add-iam-policy-binding {{{project_0.project_id}}} \ --member=serviceAccount:$PROJECT_NUMBER-compute@developer.gserviceaccount.com \ --role=roles/composer.worker

3. Run the following commands to ensure that the required APIs are enabled cleanly in your project.

gcloud services disable composer.googleapis.com gcloud services disable artifactregistry.googleapis.com gcloud services disable container.googleapis.com gcloud services enable artifactregistry.googleapis.com gcloud services enable container.googleapis.com gcloud services enable composer.googleapis.com

Task 2. Create Cloud Composer environment

In this section, you create a Cloud Composer environment.

Note: Before proceeding further, make sure that you have performed earlier tasks to ensure that the required APIs are successfully enabled. If not, then please perform those tasks otherwise Cloud Composer environment creation will fail.

1. On the Google Cloud console title bar, type Composer in the Search field, then click Composer in the Products & Page section.

2. Click Create Environment and select Composer 3. Set the following for your environment:

Property	Value
Name	highcpu
Location
Image Version	composer-3-airflow-n.n.n-build.n (Note: select the highest number image available)

3. Under Environment resources, Select Small.

Leave all other settings as default.

4. Click Create.

The environment creation process is completed when the green checkmark displays to the left of the environment name on the Environments page in the console.

It can take 15-30 minutes for the environment to complete the setup process. Continue with the lab while the environment spins up.

Click Check my progress to verify the objective.

Create Cloud Composer environment.

Create a Cloud Storage bucket

Create a Cloud Storage bucket in your project. This bucket will be used as output for the Hadoop job from Dataproc.

1. Go to Navigation menu > Cloud Storage > Buckets and then click + Create.

2. Give your bucket a universally unique name such as your Project ID, , then click Create. If prompted Public access will be prevented, click Confirm.

Remember the Cloud Storage bucket name to use it as an Airflow variable later in the lab.

Click Check my progress to verify the objective.

Create a Cloud Storage bucket.

Task 3. Airflow and core concepts

While waiting for your Composer environment to get created, review some terms that are used with Airflow.

Airflow is a platform to programmatically author, schedule and monitor workflows.

Use Airflow to author workflows as directed acyclic graphs (DAGs) of tasks. The airflow scheduler executes your tasks on an array of workers while following the specified dependencies.

Core concepts

DAG

A Directed Acyclic Graph is a collection of all the tasks you want to run, organized in a way that reflects their relationships and dependencies.

Operator

The description of a single task, it is usually atomic. For example, the BashOperator is used to execute bash commands.

Task

A parameterised instance of an Operator; a node in the DAG.

Task Instance

A specific run of a task; characterized as: a DAG, a Task, and a point in time. It has an indicative state: running, success, failed, skipped, ...

You can read more about the concepts in the Concepts documentation.

Task 4. Defining the workflow

Now let's discuss the workflow you'll be using. Cloud Composer workflows are comprised of DAGs (Directed Acyclic Graphs). DAGs are defined in standard Python files that are placed in Airflow's DAG_FOLDER. Airflow will execute the code in each file to dynamically build the DAG objects. You can have as many DAGs as you want, each describing an arbitrary number of tasks. In general, each one should correspond to a single logical workflow.

Below is the hadoop_tutorial.py workflow code, also referred to as the DAG:

"""Example Airflow DAG that creates a Cloud Dataproc cluster, runs the Hadoop wordcount example, and deletes the cluster. This DAG relies on three Airflow variables https://airflow.apache.org/concepts.html#variables * gcp_project - Google Cloud Project to use for the Cloud Dataproc cluster. * gce_zone - Google Compute Engine zone where Cloud Dataproc cluster should be created. * gce_region - Google Compute Engine region where Cloud Dataproc cluster should be created. * gcs_bucket - Google Cloud Storage bucket to used as output for the Hadoop jobs from Dataproc. See https://cloud.google.com/storage/docs/creating-buckets for creating a bucket. """ import datetime import os from airflow import models from airflow.contrib.operators import dataproc_operator from airflow.utils import trigger_rule # Output file for Cloud Dataproc job. output_file = os.path.join( models.Variable.get('gcs_bucket'), 'wordcount', datetime.datetime.now().strftime('%Y%m%d-%H%M%S')) + os.sep # Path to Hadoop wordcount example available on every Dataproc cluster. WORDCOUNT_JAR = ( 'file:///usr/lib/hadoop-mapreduce/hadoop-mapreduce-examples.jar' ) # Arguments to pass to Cloud Dataproc job. wordcount_args = ['wordcount', 'gs://pub/shakespeare/rose.txt', output_file] yesterday = datetime.datetime.combine( datetime.datetime.today() - datetime.timedelta(1), datetime.datetime.min.time()) default_dag_args = { # Setting start date as yesterday starts the DAG immediately when it is # detected in the Cloud Storage bucket. 'start_date': yesterday, # To email on failure or retry set 'email' arg to your email and enable # emailing here. 'email_on_failure': False, 'email_on_retry': False, # If a task fails, retry it once after waiting at least 5 minutes 'retries': 1, 'retry_delay': datetime.timedelta(minutes=5), 'project_id': models.Variable.get('gcp_project') } with models.DAG( 'composer_hadoop_tutorial', # Continue to run DAG once per day schedule_interval=datetime.timedelta(days=1), default_args=default_dag_args) as dag: # Create a Cloud Dataproc cluster. create_dataproc_cluster = dataproc_operator.DataprocClusterCreateOperator( task_id='create_dataproc_cluster', # Give the cluster a unique name by appending the date scheduled. # See https://airflow.apache.org/code.html#default-variables cluster_name='composer-hadoop-tutorial-cluster-{{ ds_nodash }}', num_workers=2, region=models.Variable.get('gce_region'), zone=models.Variable.get('gce_zone'), image_version='2.0', master_machine_type='e2-standard-2', worker_machine_type='e2-standard-2') # Run the Hadoop wordcount example installed on the Cloud Dataproc cluster # master node. run_dataproc_hadoop = dataproc_operator.DataProcHadoopOperator( task_id='run_dataproc_hadoop', region=models.Variable.get('gce_region'), main_jar=WORDCOUNT_JAR, cluster_name='composer-hadoop-tutorial-cluster-{{ ds_nodash }}', arguments=wordcount_args) # Delete Cloud Dataproc cluster. delete_dataproc_cluster = dataproc_operator.DataprocClusterDeleteOperator( task_id='delete_dataproc_cluster', region=models.Variable.get('gce_region'), cluster_name='composer-hadoop-tutorial-cluster-{{ ds_nodash }}', # Setting trigger_rule to ALL_DONE causes the cluster to be deleted # even if the Dataproc job fails. trigger_rule=trigger_rule.TriggerRule.ALL_DONE) # Define DAG dependencies. create_dataproc_cluster >> run_dataproc_hadoop >> delete_dataproc_cluster

To orchestrate the three workflow tasks, the DAG imports the following operators:

1. DataprocClusterCreateOperator: Creates a Cloud Dataproc cluster.
2. DataProcHadoopOperator: Submits a Hadoop wordcount job and writes results to a Cloud Storage bucket.
3. DataprocClusterDeleteOperator: Deletes the cluster to avoid incurring ongoing Compute Engine charges.

The tasks run sequentially, which you can see in this section of the file:

# Define DAG dependencies. create_dataproc_cluster >> run_dataproc_hadoop >> delete_dataproc_cluster

The name of the DAG is composer_hadoop_tutorial, and the DAG runs once each day:

with models.DAG( 'composer_hadoop_tutorial', # Continue to run DAG once per day schedule_interval=datetime.timedelta(days=1), default_args=default_dag_args) as dag:

Because the start_date that is passed in to default_dag_args is set to yesterday, Cloud Composer schedules the workflow to start immediately after the DAG uploads.

Task 5. Viewing environment information

1. Go back to Composer to check the status of your environment.

2. Once your environment has been created, click the name of the environment (highcpu) to see its details.

On the Environment configuration tab you'll see information such as the Airflow web UI URL, GKE cluster, and a link to the DAGs folder, which is stored in your bucket.

Note: Cloud Composer only schedules the workflows in the /dags folder.

Task 6. Using the Airflow UI

To access the Airflow web interface using the console:

1. Go back to the Environments page.
2. In the Airflow webserver column for the environment, click Airflow.
3. Click on your lab credentials.
4. The Airflow web interface opens in a new browser window.

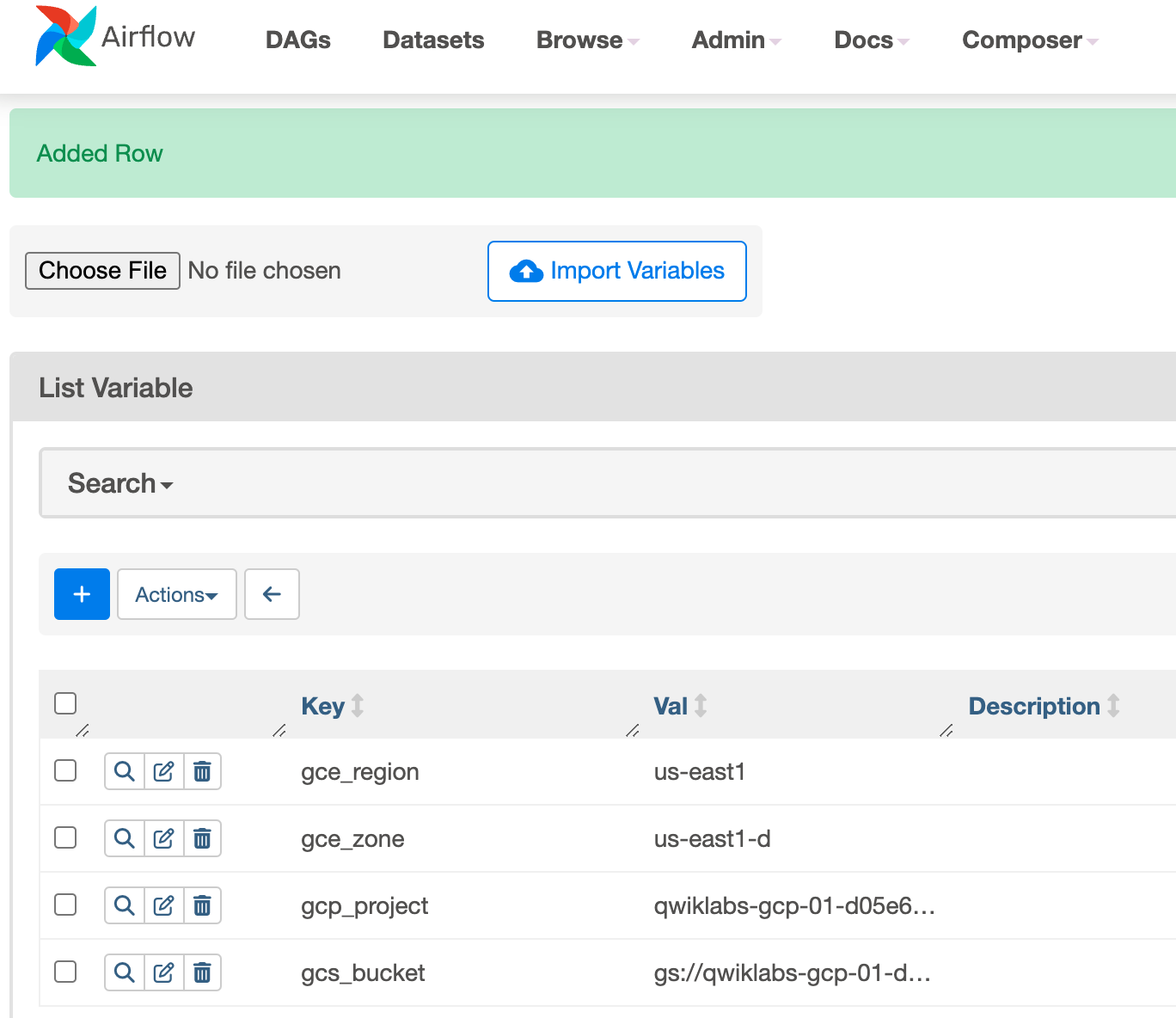

Task 7. Setting Airflow variables

Airflow variables are an Airflow-specific concept that is distinct from environment variables.

1. From the Airflow interface, select Admin > Variables from the menu bar.

2. Click + icon to add a new record.

3. Create the following Airflow variables: gcp_project, gcs_bucket, gce_zone, and gce_region. Click Save after each variable.

Key	Val	Details
gcp_project		The Google Cloud Platform project you're using for this lab.
gcs_bucket	gs://<my-bucket>	Replace <my-bucket> with the name of the Cloud Storage bucket you made earlier. This bucket stores the output from the Hadoop jobs from Dataproc.
gce_zone		This is the Compute Engine zone where your Cloud Dataproc cluster will be created.
gce_region		This is the Compute Engine region where your Cloud Dataproc cluster will be created.

Click Save. After adding first variable repeat the same process for second and third variable. Your Variables table should look like this when you're finished:

Task 8. Uploading the DAG to Cloud Storage

To upload the DAG:

1. In the Cloud Shell run the below command to upload a copy of the hadoop_tutorial.py file to the Cloud Storage bucket that was automatically created when you created the environment.

2. Replace <DAGs_folder_path> in the following command with the path to the DAGs folder:

gcloud storage cp gs://cloud-training/datawarehousing/lab_assets/hadoop_tutorial.py <DAGs_folder_path>

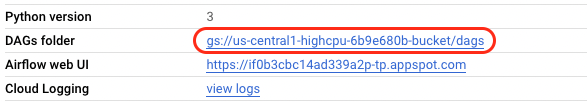

• You can get the path by going to Composer.
• Click on the environment you created earlier and then click on the Environment Configuration tab to see the details of the environment.
• Find DAGs folder and copy the path.

The revised command to upload the file will look similar to the one below:

gcloud storage cp gs://cloud-training/datawarehousing/lab_assets/hadoop_tutorial.py gs://{{{project_0.default_region|REGION}}}-highcpu-0682d8c0-bucket/dags

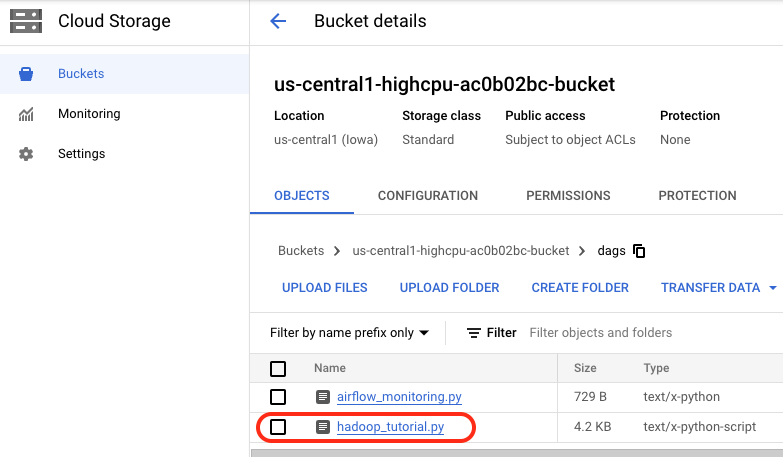

3. Once the file has been successfully uploaded to the DAGs directory, open dags folder in the bucket and you will see the file in the Objects tab of the Bucket details.

When a DAG file is added to the DAGs folder, Cloud Composer adds the DAG to Airflow and schedules it automatically. DAG changes occur within 3-5 minutes.

You can see the task status of the composer_hadoop_tutorial DAG in the Airflow web interface.

Note: You may safely ignore any message on the interface such as "The scheduler does not appear to be running...". The Airflow web interface will update as the DAG progresses.

Click Check my progress to verify the objective.

Uploading the DAG to Cloud Storage.

Exploring DAG runs

When you upload your DAG file to the dags folder in Cloud Storage, Cloud Composer parses the file. If no errors are found, the name of the workflow appears in the DAG listing, and the workflow is queued to run immediately.

1. Make sure that you're on the DAGs tab in the Airflow web interface. It takes several minutes for this process to complete. Refresh your browser to make sure you're looking at the latest information.

2. In Airflow, click composer_hadoop_tutorial to open the DAG details page. This page includes several representations of the workflow tasks and dependencies.

3. In the toolbar, click Graph. Mouseover the graphic for each task to see its status. Note that the border around each task also indicates the status (green border = running; red = failed, etc.).

4. Click the "Refresh" link to make sure you're looking at the most recent information. The borders of the processes change color as the state of the process changes

Note: If your Dataproc cluster already exists, you can run the workflow again to reach the success state by clicking `create_dataproc_cluster` graphic and then click Clear to reset the three tasks and click OK to confirm.

5. Once the status for create_dataproc_cluster has changed to "running", go to Navigation menu > Dataproc, then click on:

   • Clusters to monitor cluster creation and deletion. The cluster created by the workflow is ephemeral: it only exists for the duration of the workflow and is deleted as part of the last workflow task.
   • Jobs to monitor the Apache Hadoop wordcount job. Click the Job ID to see job log output.

6. Once Dataproc gets to a state of "Running", return to Airflow and click Refresh to see that the cluster is complete.

When the run_dataproc_hadoop process is complete, go to Navigation menu > Cloud Storage > Buckets and click on the name of your bucket to see the results of the wordcount in the wordcount folder.

7. Once all the steps are complete in the DAG, each step has a dark green border. Additionally the Dataproc cluster that was created is now deleted.

Congratulations!

You've successfully run a Cloud Composer workflow!

Next steps

• Check out when Cloud Composer was presented at NEXT 18 in San Francisco: Flexible, Easy Data Pipelines on Google Cloud with Cloud Composer (Cloud Next '18)
• To see the value of a variable, run the Airflow CLI sub-command variables with the get argument or use the Airflow web interface.
• For information about the Airflow web interface, see Accessing the web interface.
