You have recently been hired as a cloud developer by an IT enterprise using Google Cloud as its principal Cloud Services Provider (CSP). You were instructed to build serverless, stateless web applications in the cloud. So you need to adopt the Cloud Run service offered by Google Cloud. Some of your concerns are:

• Cloud Run API activation
• Container image storage
• Serverless containerized apps deployment
• Cost reduction best practices

Since you worked with AWS at your previous employer, you know that AWS Fargate provisions containerized environments serverlessly. AWS Fargate handles the task of launching, scaling, and monitoring the containers, making it easier for developers to focus on their application code to easily deploy, manage, and scale containerized applications. Also, AWS Fargate allows you to deploy containers for Amazon Elastic Container Service (Amazon ECS) or Amazon Elastic Kubernetes Service (Amazon EKS). This means that developers can choose the orchestration option that best fits their needs.

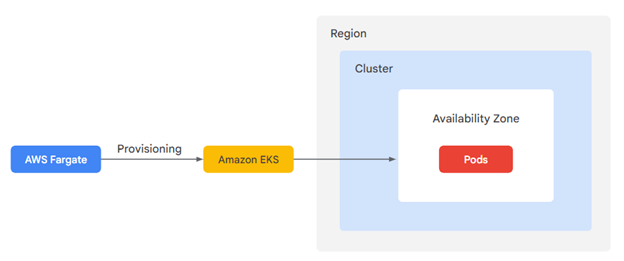

A serverless containerized application based on AWS Fargate looks like the following diagram:

Now you will explore how you will deploy applications on Google Cloud.

Overview

Cloud Run is a managed compute platform that enables you to run stateless containers that are invocable via HTTP requests. Cloud Run is serverless: it abstracts away all infrastructure management, so you can focus on what matters most — building great applications.

Cloud Run is built from Knative, letting you choose to run your containers either fully managed with Cloud Run, or in your Google Kubernetes Engine cluster with Cloud Run on GKE.

The goal of this lab is for you to build a simple containerized application image and deploy it to Cloud Run.

Objectives

In this lab, you learn to:

• Enable the Cloud Run API.
• Create a simple Node.js application that can be deployed as a serverless, stateless container.
• Containerize your application and upload to Container Registry (now called "Artifact Registry.")
• Deploy a containerized application on Cloud Run.
• Delete unneeded images to avoid incurring extra storage charges.

Setup and requirements

For each lab, you get a new Google Cloud project and set of resources for a fixed time at no cost.

1. Sign in to Qwiklabs using an incognito window.

2. Note the lab's access time (for example, 1:15:00), and make sure you can finish within that time.
   There is no pause feature. You can restart if needed, but you have to start at the beginning.

3. When ready, click Start lab.

4. Note your lab credentials (Username and Password). You will use them to sign in to the Google Cloud Console.

5. Click Open Google Console.

6. Click Use another account and copy/paste credentials for this lab into the prompts.
   If you use other credentials, you'll receive errors or incur charges.

7. Accept the terms and skip the recovery resource page.

How to start your lab and sign in to the Console

1. Click the Start Lab button. If you need to pay for the lab, a pop-up opens for you to select your payment method. On the left is a panel populated with the temporary credentials that you must use for this lab.



2. Copy the username, and then click Open Google Console. The lab spins up resources, and then opens another tab that shows the Choose an account page.

   Note: Open the tabs in separate windows, side-by-side.

3. On the Choose an account page, click Use Another Account. The Sign in page opens.



4. Paste the username that you copied from the Connection Details panel. Then copy and paste the password.

Note: You must use the credentials from the Connection Details panel. Do not use your Google Cloud Skills Boost credentials. If you have your own Google Cloud account, do not use it for this lab (avoids incurring charges).

5. Click through the subsequent pages:

• Accept the terms and conditions.
• Do not add recovery options or two-factor authentication (because this is a temporary account).
• Do not sign up for free trials.

After a few moments, the Cloud console opens in this tab.

Note: You can view the menu with a list of Google Cloud Products and Services by clicking the Navigation menu at the top-left.

Activate Google Cloud Shell

Google Cloud Shell is a virtual machine that is loaded with development tools. It offers a persistent 5GB home directory and runs on the Google Cloud.

Google Cloud Shell provides command-line access to your Google Cloud resources.

1. In Cloud console, on the top right toolbar, click the Open Cloud Shell button.



2. Click Continue.

It takes a few moments to provision and connect to the environment. When you are connected, you are already authenticated, and the project is set to your PROJECT_ID. For example:

gcloud is the command-line tool for Google Cloud. It comes pre-installed on Cloud Shell and supports tab-completion.

• You can list the active account name with this command:

gcloud auth list

Output:

Credentialed accounts: - @.com (active)

Example output:

Credentialed accounts: - google1623327_student@qwiklabs.net

• You can list the project ID with this command:

gcloud config list project

Output:

[core] project =

Example output:

[core] project = qwiklabs-gcp-44776a13dea667a6 Note: Full documentation of gcloud is available in the gcloud CLI overview guide .

Reference

Basic Linux Commands

Below you will find a reference list of a few very basic Linux commands which may be included in the instructions or code blocks for this lab.

Command -->	Action	.	Command -->	Action
mkdir (make directory)	create a new folder	.	cd (change directory)	change location to another folder
ls (list )	list files and folders in the directory	.	cat (concatenate)	read contents of a file without using an editor
apt-get update	update package manager library	.	ping	signal to test reachability of a host
mv (move )	moves a file	.	cp (copy)	makes a file copy
pwd (present working directory )	returns your current location	.	sudo (super user do)	gives higher administration privileges

Task 1. Enable the Cloud Run API and configure your Shell environment

1. From Cloud Shell, enable the Cloud Run API :

gcloud services enable run.googleapis.com

2. If you are asked to authorize the use of your credentials, do so. You should then see a successful message similar to this one:

Operation "operations/acf.cc11852d-40af-47ad-9d59-477a12847c9e" finished successfully. Note: You can also enable the API using the APIs & Services section of the console.

3. Set the compute region:

gcloud config set compute/region {{{ project_0.default_region| "Region" }}}

4. Create a LOCATION environment variable:

LOCATION="{{{ project_0.default_region| "Region" }}}"

Task 2. Write the sample application

In this task, you will build a simple express-based NodeJS application which responds to HTTP requests.

1. In Cloud Shell create a new directory named helloworld, then move your view into that directory:

mkdir helloworld && cd helloworld

2. Next you'll be creating and editing files. To edit files, use vi, emac, nano or the Cloud Shell Code Editor by clicking on the Open Editor button in Cloud Shell.

3. Create a package.json file, then add the following content to it:

nano package.json { "name": "helloworld", "description": "Simple hello world sample in Node", "version": "1.0.0", "main": "index.js", "scripts": { "start": "node index.js" }, "author": "Google LLC", "license": "Apache-2.0", "dependencies": { "express": "^4.17.1" } }

Most importantly, the file above contains a start script command and a dependency on the Express web application framework.

4. Press CTRL+X, then Y to save the package.json file.

5. Next, in the same directory, create a index.js file, and copy the following lines into it:

nano index.js const express = require('express'); const app = express(); const port = process.env.PORT || 8080; app.get('/', (req, res) => { const name = process.env.NAME || 'World'; res.send(`Hello ${name}!`); }); app.listen(port, () => { console.log(`helloworld: listening on port ${port}`); });

This code creates a basic web server that listens on the port defined by the PORT environment variable. Your app is now finished and ready to be containerized and uploaded to Container Registry.

6. Press CTRL+X, then Y to save the index.js file.

Note: You can use many other languages to get started with Cloud Run. You can find instructions for Go, Python, Java, PHP, Ruby, Shell scripts, and others from the Quickstarts guide.

Task 3. Containerize your app and upload it to Artifact Registry

1. To containerize the sample app, create a new file named Dockerfile in the same directory as the source files, and add the following content:

nano Dockerfile # Use the official lightweight Node.js 12 image. # https://hub.docker.com/_/node FROM node:12-slim # Create and change to the app directory. WORKDIR /usr/src/app # Copy application dependency manifests to the container image. # A wildcard is used to ensure copying both package.json AND package-lock.json (when available). # Copying this first prevents re-running npm install on every code change. COPY package*.json ./ # Install production dependencies. # If you add a package-lock.json, speed your build by switching to 'npm ci'. # RUN npm ci --only=production RUN npm install --only=production # Copy local code to the container image. COPY . ./ # Run the web service on container startup. CMD [ "npm", "start" ]

2. Press CTRL+X, then Y to save the Dockerfile file.

3. Now, build your container image using Cloud Build by running the following command from the directory containing the Dockerfile. (Note the $GOOGLE_CLOUD_PROJECT environmental variable in the command, which contains your lab's Project ID):

gcloud builds submit --tag gcr.io/$GOOGLE_CLOUD_PROJECT/helloworld

Cloud Build is a service that executes your builds on GCP. It executes a series of build steps, where each build step is run in a Docker container to produce your application container (or other artifacts) and push it to Cloud Registry, all in one command.

Once pushed to the registry, you will see a SUCCESS message containing the image name (gcr.io/[PROJECT-ID]/helloworld). The image is stored in Artifact Registry and can be re-used if desired.

4. List all the container images associated with your current project using this command:

gcloud container images list

5. To run and test the application locally from Cloud Shell, start it using this standard docker command:

docker run -d -p 8080:8080 gcr.io/$GOOGLE_CLOUD_PROJECT/helloworld

6. In the Cloud Shell window, click on Web preview and select Preview on port 8080.

This should open a browser window showing the "Hello World!" message. You could also simply use curl localhost:8080.

Note: If the docker command cannot pull the remote container image then try running this: gcloud auth configure-docker

Task 4. Deploy to Cloud Run

1. Deploying your containerized application to Cloud Run is done using the following command adding your Project-ID:

gcloud run deploy --image gcr.io/$GOOGLE_CLOUD_PROJECT/helloworld --allow-unauthenticated --region=$LOCATION

The allow-unauthenticated flag in the command above makes your service publicly accessible.

2. When prompted confirm the service name by pressing Enter.

Wait a few moments until the deployment is complete.

On success, the command line displays the service URL:

Service [helloworld] revision [helloworld-00001-xit] has been deployed and is serving 100 percent of traffic. Service URL: https://helloworld-h6cp412q3a-uc.a.run.app

You can now visit your deployed container by opening the service URL in any browser window.

Congratulations! You have just deployed an application packaged in a container image to Cloud Run. Cloud Run automatically and horizontally scales your container image to handle the received requests, then scales down when demand decreases. In your own environment, you only pay for the CPU, memory, and networking consumed during request handling.

For this lab you used the gcloud command-line. Cloud Run is also available via Cloud Console.

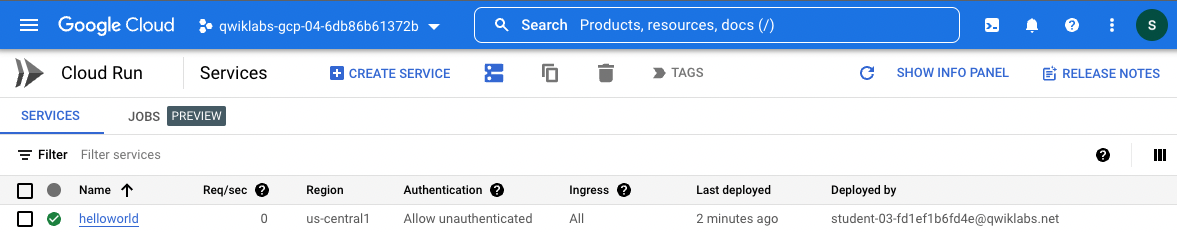

• From the Navigation menu, in the Serverless section, click Cloud Run and you should see your helloworld service listed:

Task 5. Clean up

While Cloud Run does not charge when the service is not in use, you might still be charged for storing the built container image.

1. You can either decide to delete your GCP project to avoid incurring charges, which will stop billing for all the resources used within that project, or simply delete your helloworld image using this command :

gcloud container images delete gcr.io/$GOOGLE_CLOUD_PROJECT/helloworld

2. When prompted to continue type Y, and press Enter.

3. To delete the Cloud Run service, use this command :

gcloud run services delete helloworld --region={{{ project_0.default_region| "Region" }}}

4. When prompted to continue type Y, and press Enter.

Congratulations!

You have completed this lab!

Google Cloud Run and AWS Fargate are both serverless computing services that allow developers to run containerized applications in a scalable and cost-effective way. However, there are some differences between these two services.

Here are some of the key similarities and differences:

Similarities:

• Both Google Cloud Run and AWS Fargate are serverless computing services, which means that developers can focus on writing code without worrying about the underlying infrastructure.
• Both services use containerization to package and deploy applications.
• Both services support Docker containers as the deployment format.
• Both services can automatically scale up or down, based on demand.

Differences:

• With AWS Fargate, users need to configure and manage the container orchestration, such as Kubernetes, whereas with Google Cloud Run, container orchestration is managed by the platform.
• Google Cloud Run is a standalone service, while AWS Fargate is the provisioning service for the container services, either Amazon ECS or Amazon EKS.
• In AWS, a combined integration of AWS Fargate and the orchestration service, such as Amazon ECS or Amazon EKS, is required to deploy the serverless containerized environment. In Google Cloud, you can use only Cloud Run.
